05/2014
4-35
DC SC2020
Disassembly/Assembly and Adjustment
6. Transfer
Version 1.1

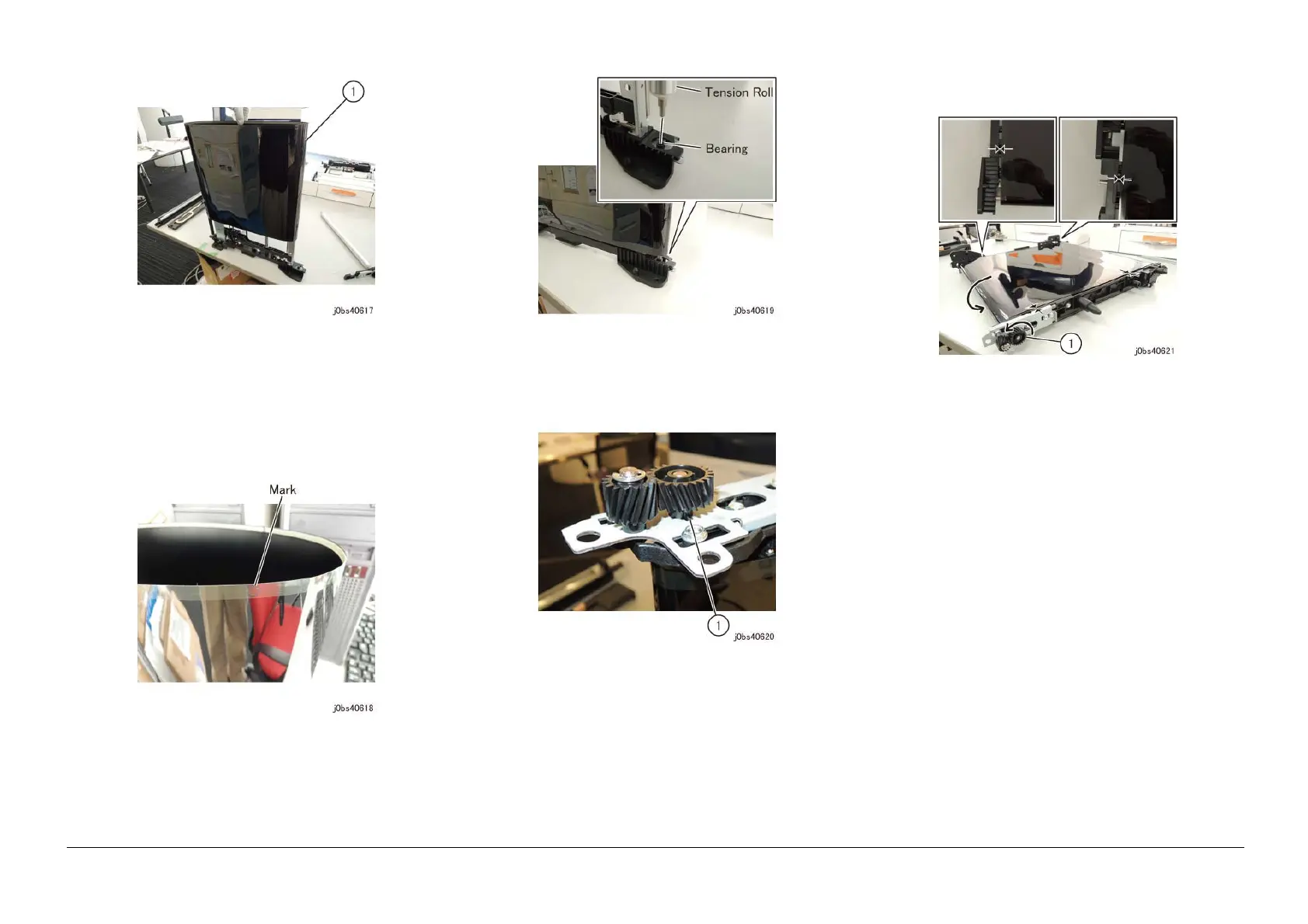

Figure 12 j0bs40617
Replacement
1. To install, carry out the removal steps in reverse order.
2. Install so the IBT Belt Mark is on the Rear side. (Figure 13)
NOTE: Assemble so the Mark is facing Up when assembling
the IBT Belt.
Figure 13 j0bs40618
3. When installing the Rear Holder and the Tension Roll, insert
the Tension Roll Shaft to the Bearing on the IBT Belt Unit side.
(Figure 14)
Figure 14 j0bs40619
4. When installing the Rear Holder and the Tension Roll, align the
Bearing Tab and Bearing Hole Cutout together. (Figure 15)
Figure 15 j0bs40620
5. Before returning the Front/Rear Tension Plate to the original
state, turn the IBT Belt to make the IBT Belt even. (Figure 16)
NOTE: Turn the Gear towards the arrow direction and spin the
IBT Belt.
Figure 16 j0bs40621
To Next Page
