Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
4-63
DC SC2020
Disassembly/Assembly and Adjustment
15. Registration
Version 1.1

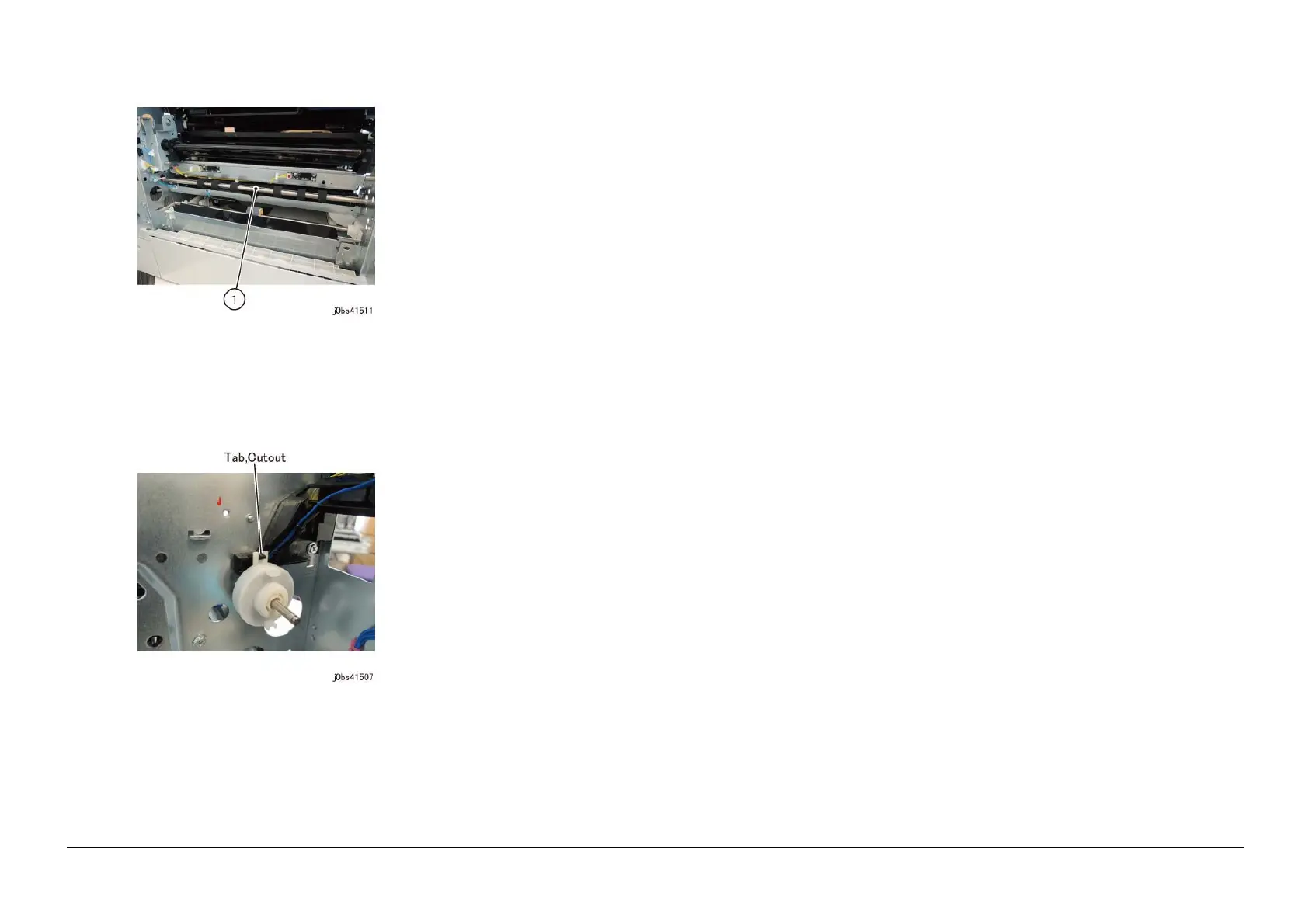

Figure 5 j0bs41511
Replacement
1. To install, carry out the removal steps in reverse order.
2. When installing the Registration Clutch, insert the Registration
Clutch Cutout into the Harness Guide Tab. (Figure 6)
Figure 6 j0bs41507
