05/2014
4-8
DC SC2020
1. IIT/UI
Version 1.1
Disassembly/Assembly and Adjustment

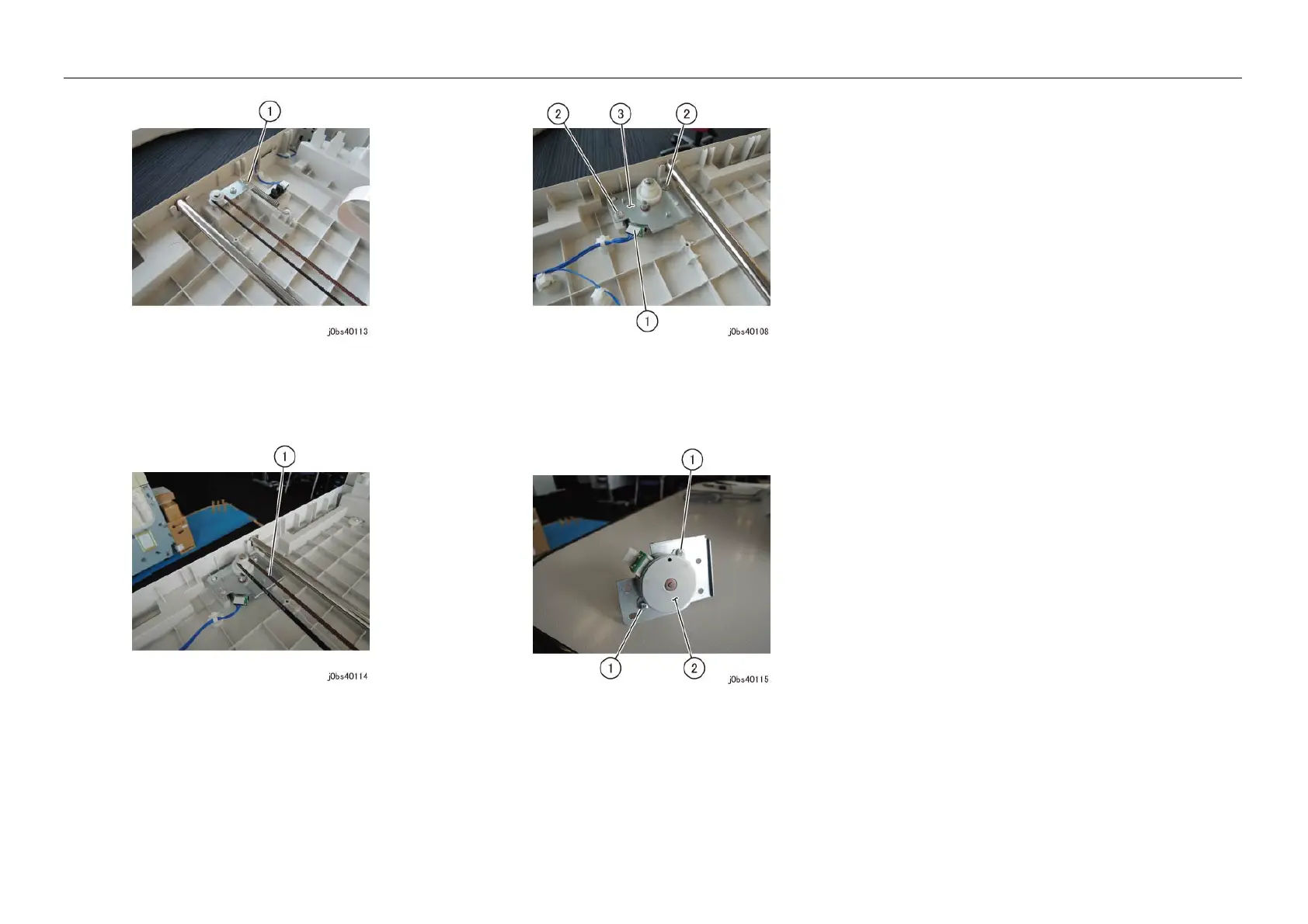

Figure 2 j0bs40113
5. Remove the CIS Sensor Assembly Belt from the pulley. (Figure
3)
(1) Remove the CIS Sensor Assembly Belt from the pulley.
Figure 3 j0bs40114
6. Remove the Scan Drive and Motor. (Figure 4)
(1) Disconnect the connector.
(2) Remove the Tapping Screw (x2).
(3) Remove the Scan Drive and Motor.
Figure 4 j0bs40108
7. Remove the IIT Scan Motor. (Figure 5)
(1) Remove the Screws (x2).
(2) Remove the IIT Scan Motor.
Figure 5 j0bs40115
Replacement
1. To install, carry out the removal steps in reverse order.
