05/2014
4-47
DC SC2020
Disassembly/Assembly and Adjustment
9. Feeder,Tray (Tray 1)
Version 1.1
REP 9.1.1 (SCC) Tray 1 Size Sensor
Parts List on PL 9.1
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.

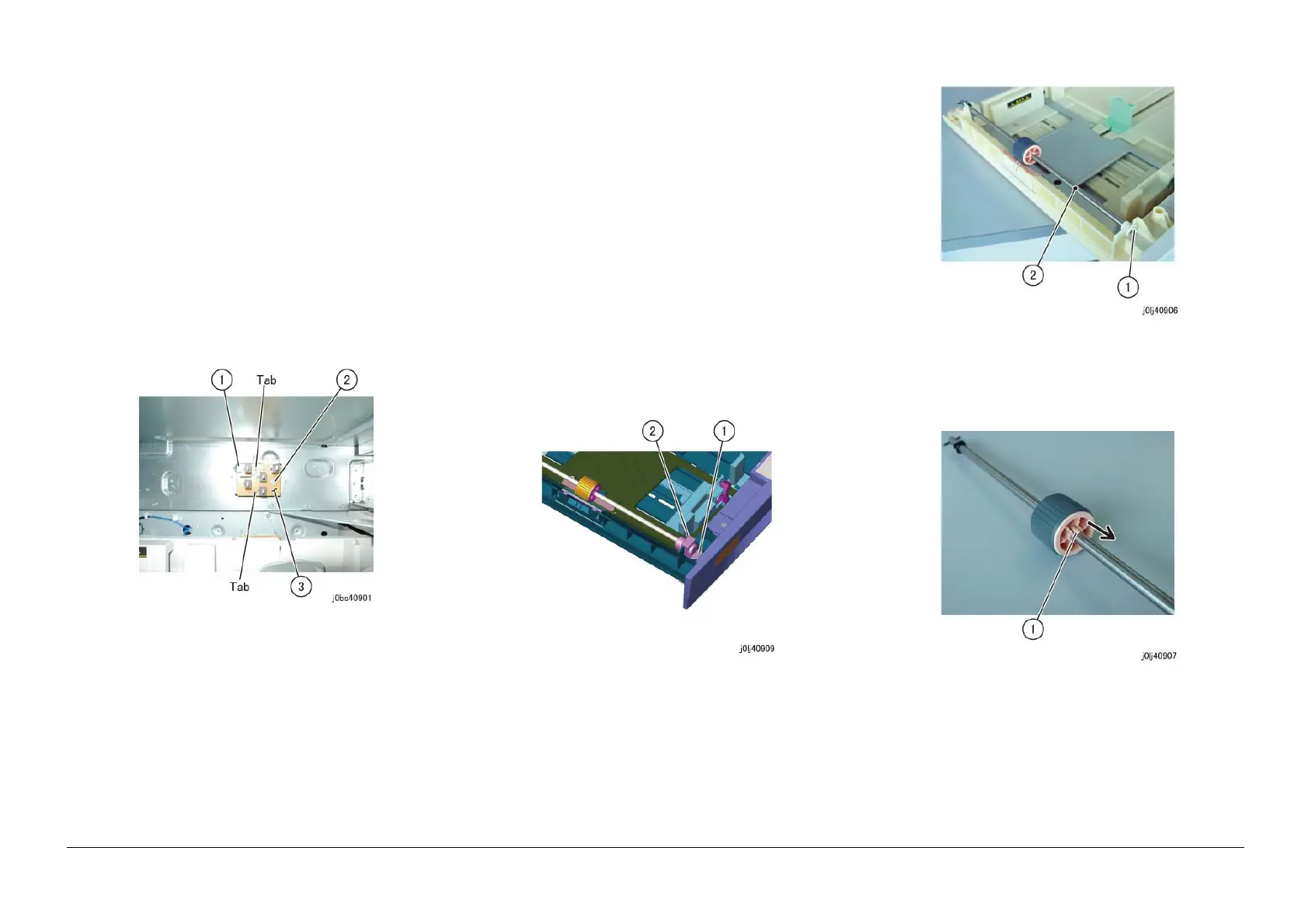

1. Remove Tray 1.
2. Remove the Tray 1 Size Sensor. (Figure 1)
(1) Disconnect the connector.
(2) Remove the screw.
(3) Remove the Tray 1 Size Sensor.
Figure 1 j0bs40901
Replacement
1. To install, carry out the removal steps in reverse order.
REP 9.2.1 Tray 1 Feed Roll and Tray 1
Retard Pad
Parts List on PL 9.2
Removal
WARNING
When turning OFF the power switch, check that the ’Data’ lamp
is OFF and that there is no Job in progress.
Turn OFF the power switch and make sure that the screen dis-
play or the Power Saver LED turns OFF.
Check that the power switch is OFF and unplug the power plug.
NOTE: The Tray 1 Feed Roll and the Tray 1 Retard Pad must be
replaced at the same time.
1. Remove Tray 1.
2. Remove the Bearing Cover. (Figure 1)
(1) Remove the Tapping Screw.
(2) Remove the Bearing Cover.
Figure 1 j0lj40909
3. Remove the Tray 1 Feed Roll and Shaft. (Figure 2)
(1) Release the hook to remove the bearing.
(2) Remove the Tray 1 Feed Roll and Shaft.
Figure 2 j0lj40906
4. Remove the Tray 1 Feed Roll. (Figure 3)
(1) Release the hook and remove the Tray 1 Feed Roll in the
direction of the arrow.
Figure 3 j0lj40907
5. Remove the Tray 1 Retard Pad. (Figure 4)
(1) Release the hook and open the Tray 1 Retard Pad.
(2) Remove the Tray 1 Retard Pad.
(3) Pull out and remove the shaft.
To Next Page
