6.4.7.1 All Test
Version 1.1
6.4.7.1 All Test
All Test allows you to execute a series of FlashROM, EEPROM, DRAM, ASIC, and IOT tests in one
go.(MAC+PHY/PANEL/USB Host/RTC tests are not carried out.)
Operation Procedure
1. Enter the CE mode. (See "6.4.2 How To Enter the CE Mode".)
2. Confirm that the [Printer Diag] is selected, and then press the [OK] button.

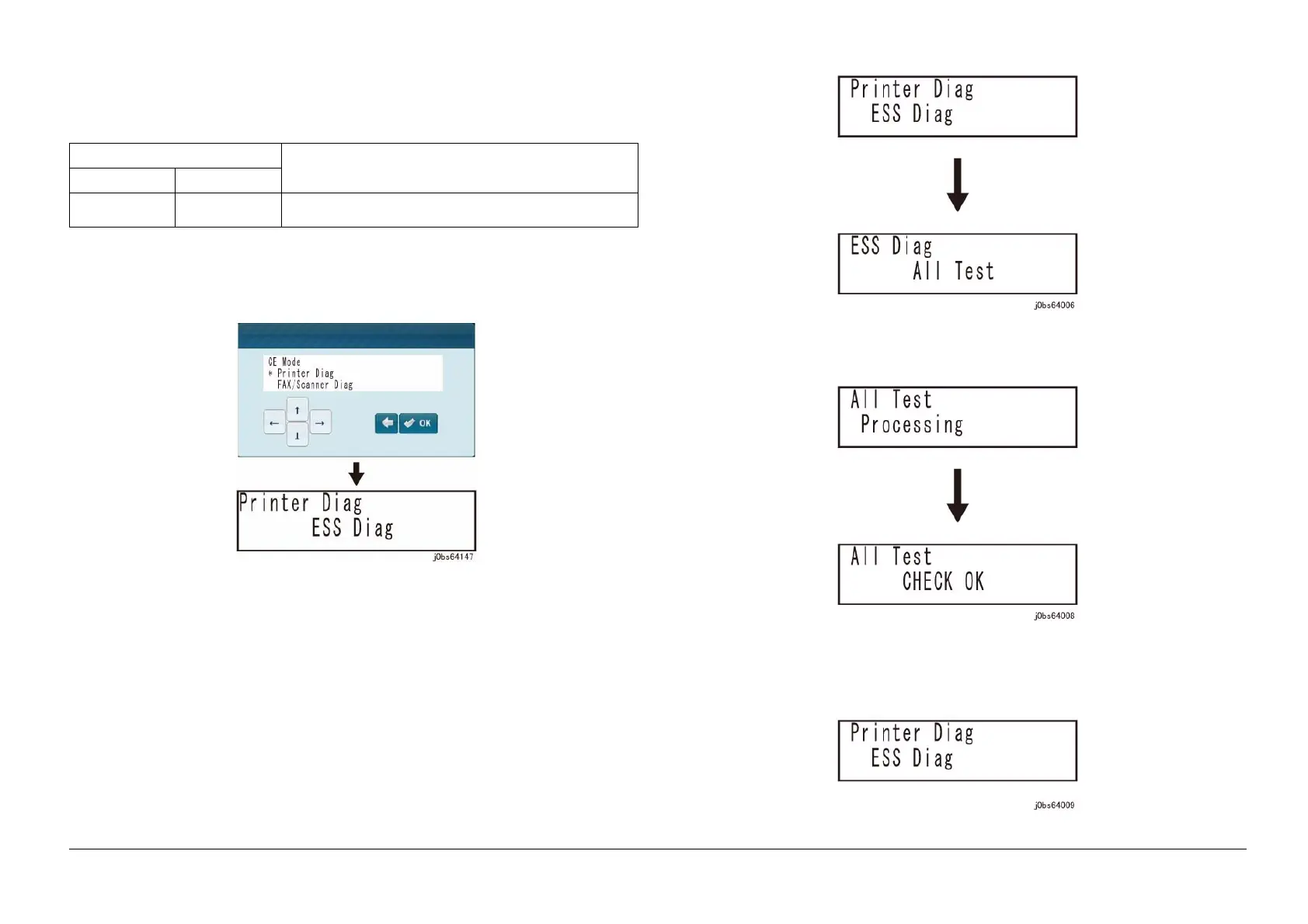

Figure 1 j0bs64147
3. Press the [OK] button.
Figure 2 j0bs64006
4. Press the [OK] button to start the test.
Figure 3 j0bs64008
5. Press the [<--] (Back) button to return to the [Printer Diag] screen.
Figure 4 j0bs64009
Table 1 All Test
Display After Diag
NoteNormal Error
CHECK OK *** Error ***: Displays the name of the test ended in error.(Flash ROM /
EEPROM / DRAM / ASIC / IOT)
