Fuji Xerox DocuCentre SC2020 Service Manual

05/2014
6-275
DC SC2020
General
6.5.11 Display Test
Version 1.1
6.5.11 Display Test
6.5.11.1 Function Explanation
• Display in the order of Red Screen, Green Screen, Blue Screen, White Screen, Black Screen,
Perimeter Frame Screen, Color Bar Screen, Grayscale Screen on the LCD and check to see if there
is no Data Line Bit missing.
6.5.11.2 Screen Layout

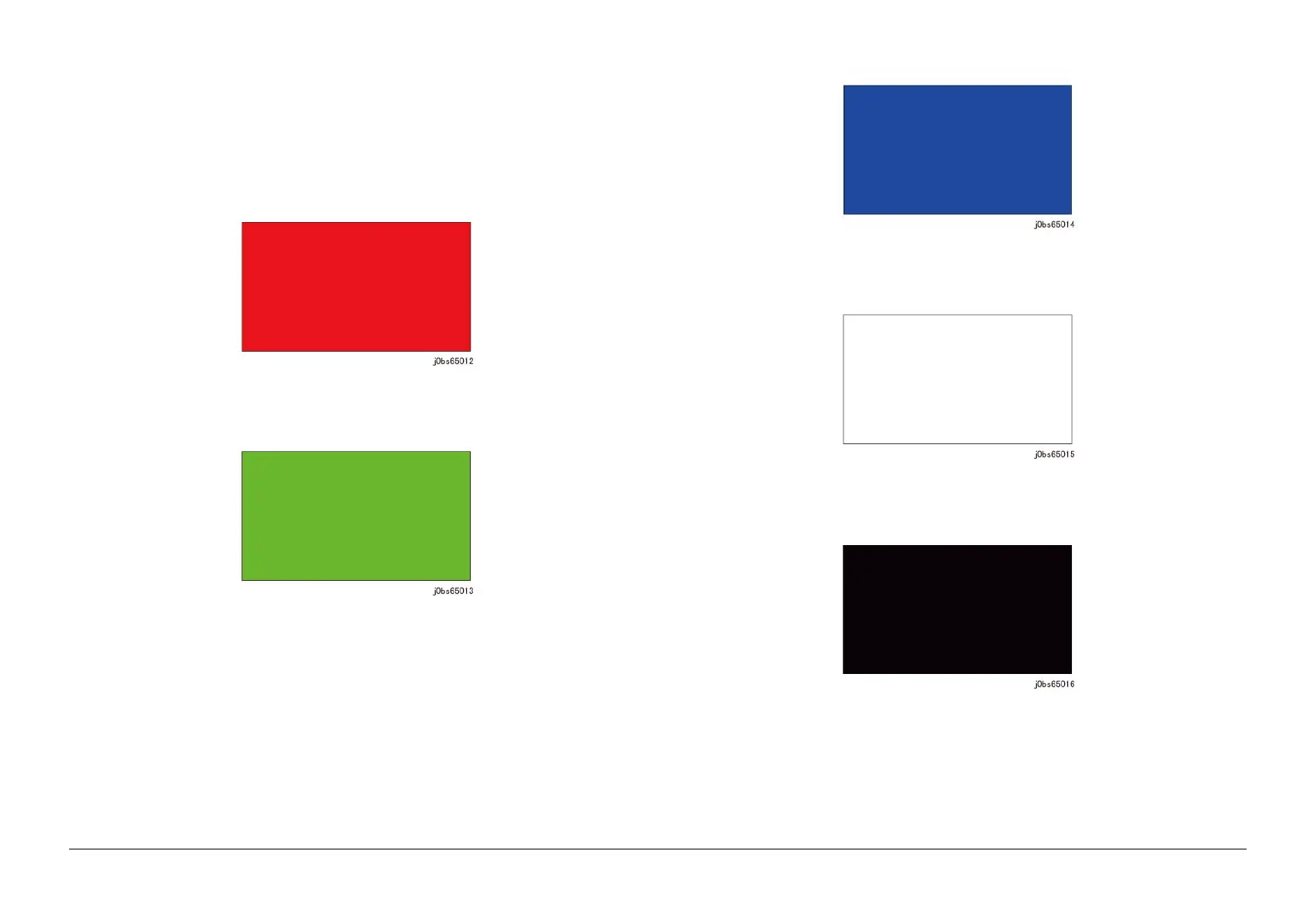

• Red Screen
Figure 1 j0bs65012
• Green Screen
Figure 2 j0bs65013
• Blue Screen
Figure 3 j0bs65014
• White Screen
Figure 4 j0bs65015
• Black Screen
Figure 5 j0bs65016
• Perimeter Frame Screen
