05/2014
6-299
DC SC2020
General
6.6.5.3 V.8 Operation / Auto Send
Version 1.1

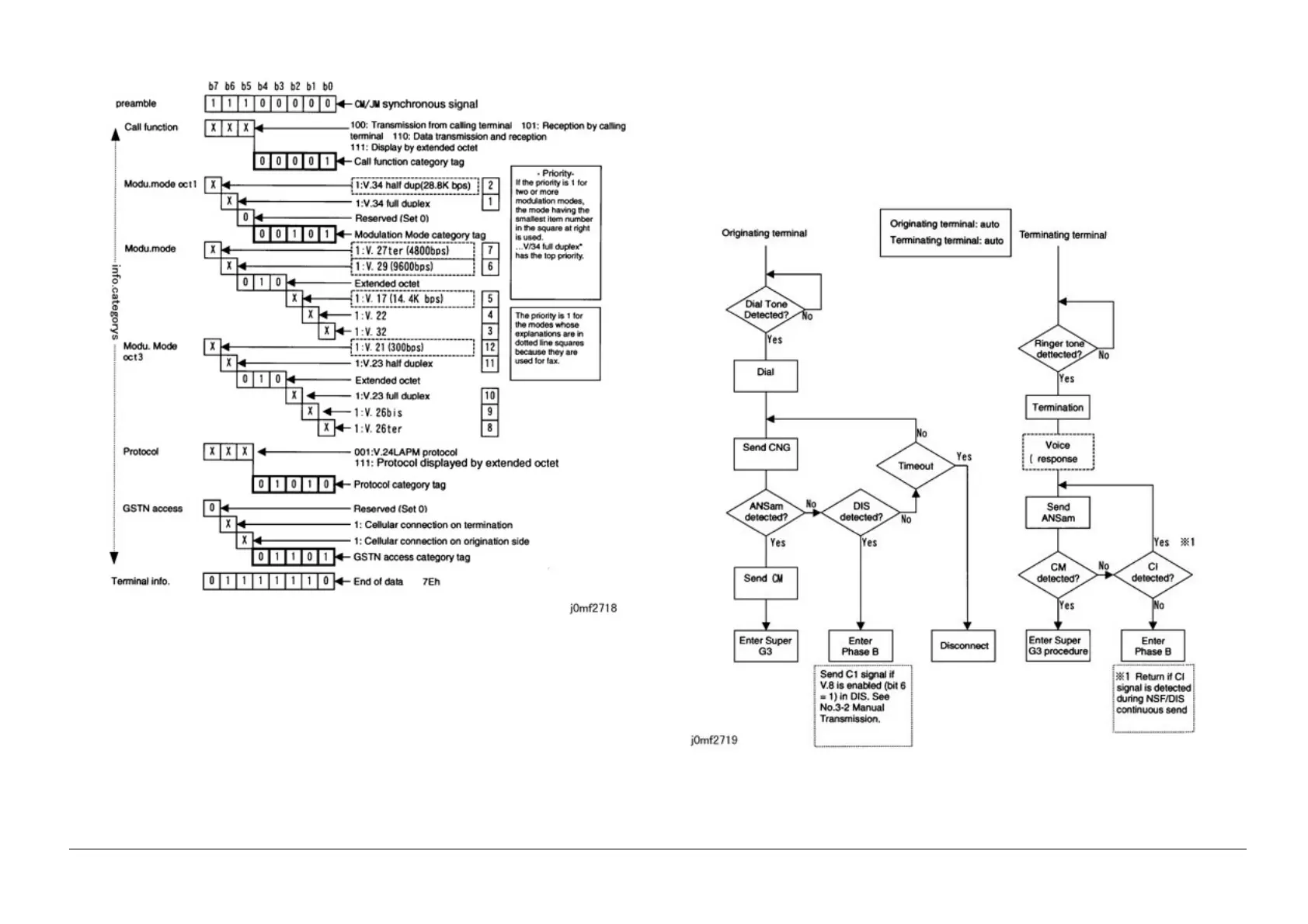

Figure 2 j0mf2718
6.6.5.3 V.8 Operation / Auto Send
[Super G3 Fax] can communicate with conventional Fax in standards other than V.34 (28.8K), such as
V.17 (14.4K) and V.29/V.27ter (9600/4800). Communication procedure is selected following the flow
below based on the capability of the remote station/detected signal.
Below is the flow when either the incoming or outgoing terminal or both has [Super G3 Fax] capability
and Auto Send takes place at the outgoing terminal.
Figure 1 j0mf2719
To Next Page
