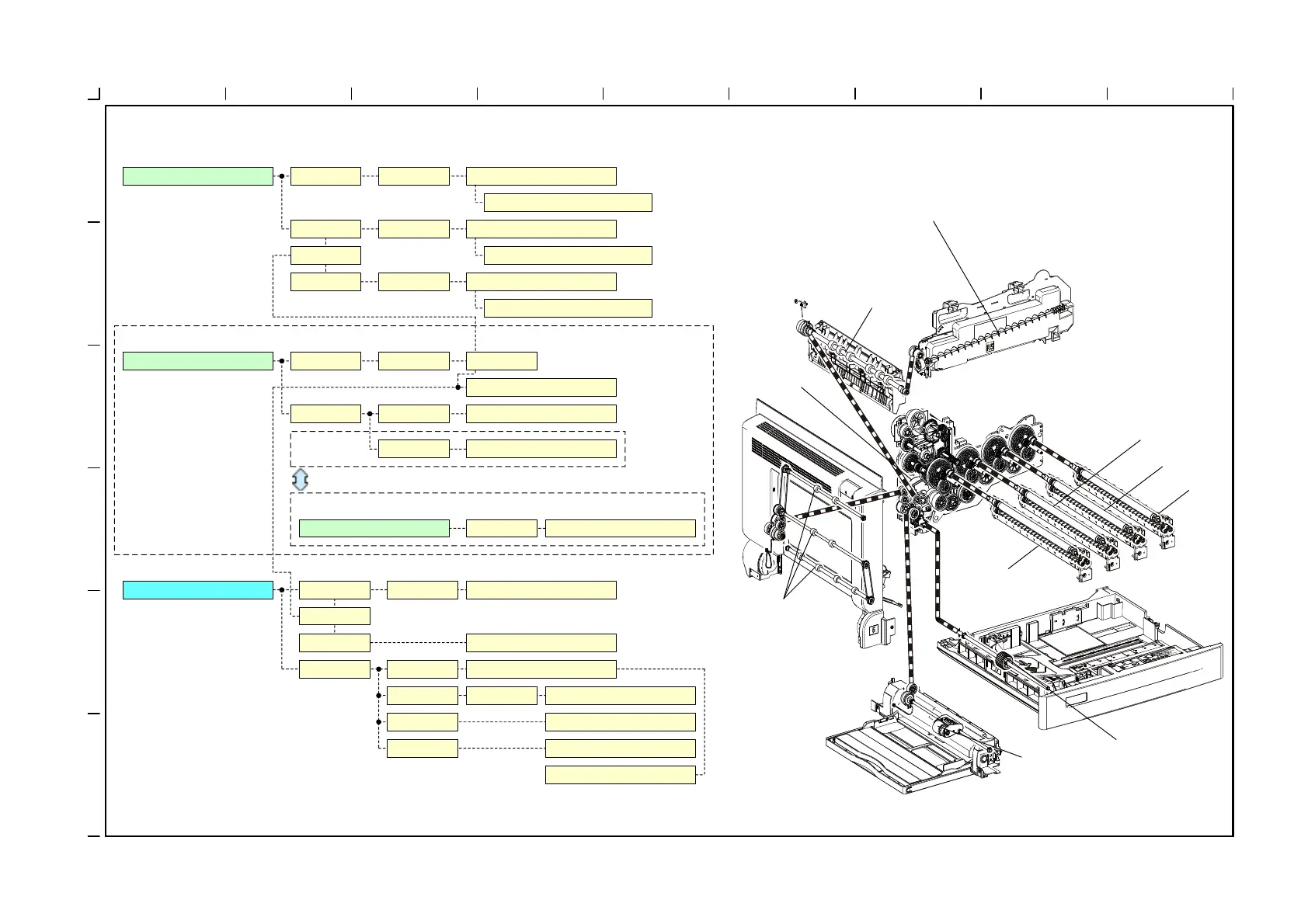

4.4 SUB MOTOR DRIVE TRANSMISSION
j0bs730404
Regi Roll
SUB MOTOR
Waste Box Auger
Main Motor (CH4.1) Gear Coupling IBT DR
IBT Cleaner Auger
Gear Coupling DRUM K
DRUM Cleaner Auger KCoupling
Gear Coupling DRUM YMC
DRUM Cleaner Auger YMC
CH10
Fusing Motor (CH10.1) Gear Solenoid
Gear Gear
1stBTR Con/Ret
Fusing HR
LINK
Gear Exit Roll
Without DUP
Gear Exit Roll
With DUP
Duplex Motor (CH10.4)
Sub Motor (CH4.2) Gear Coupling DEVE K
Coupling
Gear Clutch Regi Roll
Gear DEVE YMC
Clutch Coupling Tray Feed Roll
Clutch MSI Feed Roll
Clutch Dup Roll
Waste Box Auger
DEVE Y
DEVE M
DEVE C
DEVE K
Dup Roll
MSI Feed Roll
Tray Feed Roll
