3. Install two screws (callout 1).

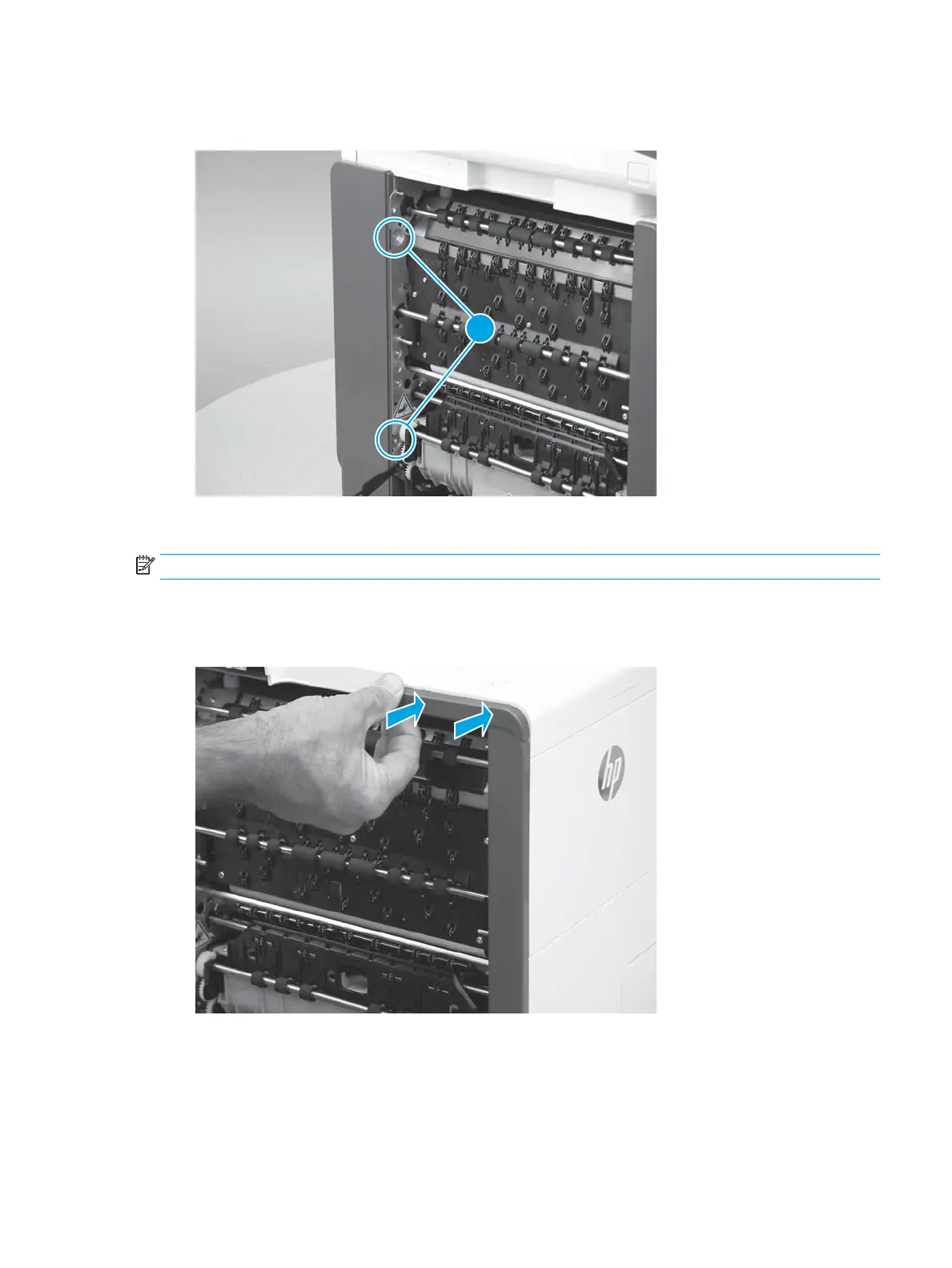

Figure 1-116 Install two screws
Step 5: Install the left-rear top cover cap (556)
NOTE: This step is for the 556 printer only. For the 586 printer, skip this step.
▲
Align the bosses on the back side of the cover with the holes in the top cover, and then push the cover
straight onto the top cover to install it.
Figure 1-117 Install the left-front top cover cap (556)
ENWW Removal and replacement procedures 107
