5. Install eight screws (callout 1).
NOTE: Two of these screws (callout 2) are a dierent type (machine screws) than the others. Make sure
that they are installed in the correct position.

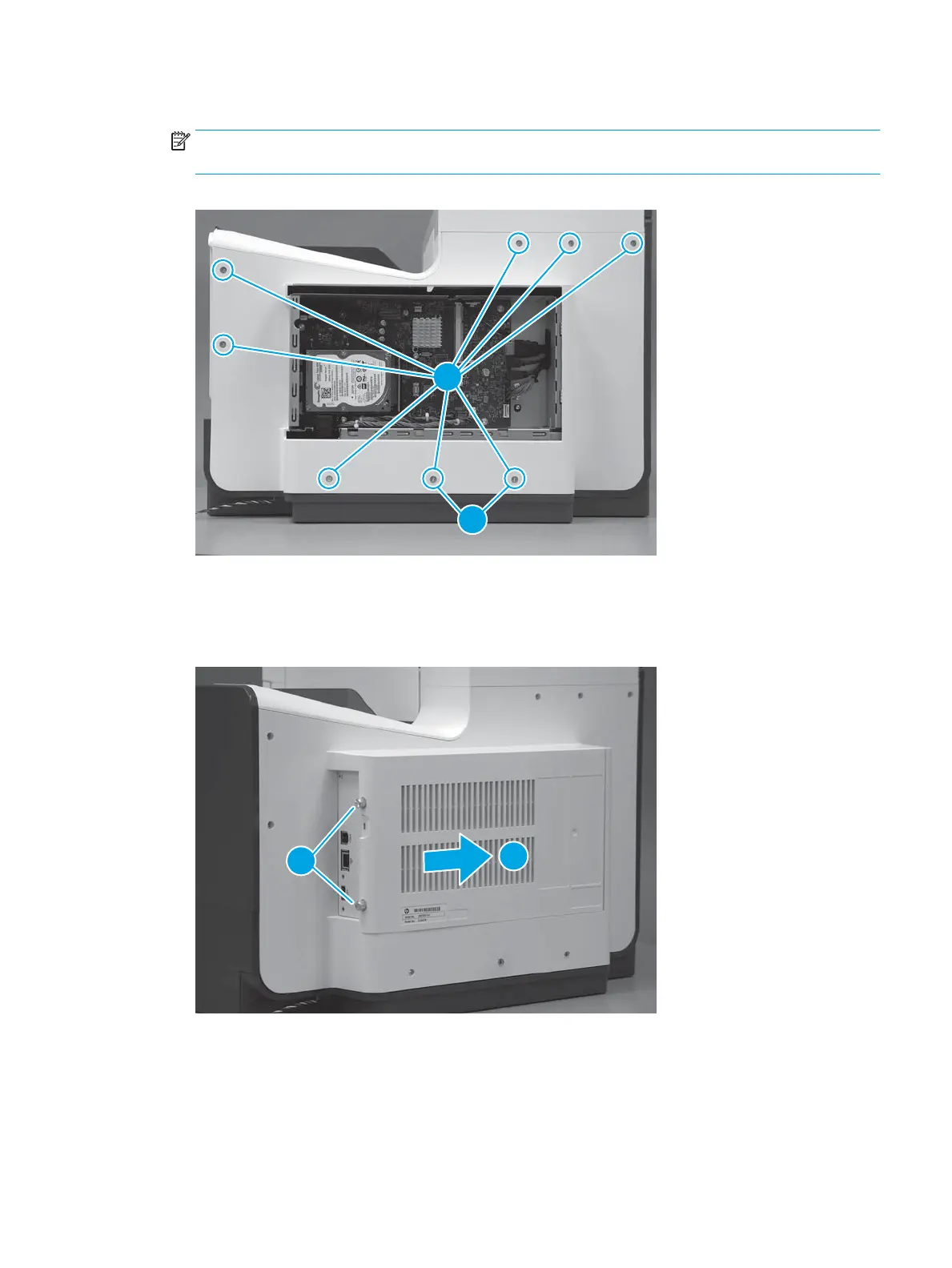

Figure 1-379 Install eight screws
Step 18: Install the formatter cover
▲
Slide the cover onto the printer (callout 1) to install it, and then install two thumb screws (callout 2).
Figure 1-380 Install the formatter cover
Step 19: Install the right cover (outer)
1. Position the bottom edge of the cover on the printer.
