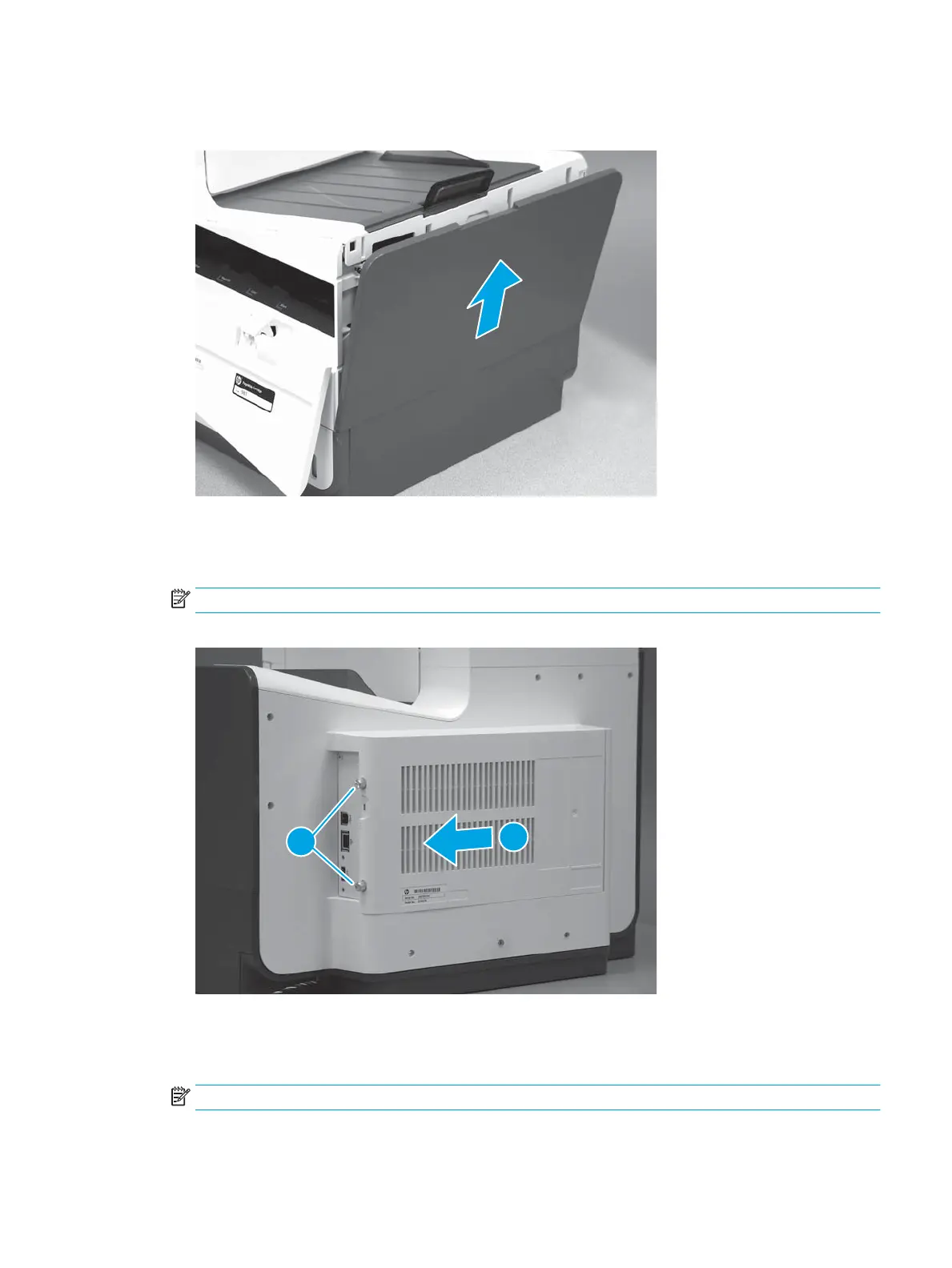

2. Slide the cover up and away from the printer to remove it.
Figure 1-329 Remove the right cover (outer)
Step 8: Remove the formatter cover
▲
Remove two thumb screws (callout 1), and then slide the cover o of the printer to remove it (callout 2).
NOTE: The thumb screws are not captive and are easily lost.
Figure 1-330 Remove the formatter cover
Step 9: Remove the rear cover
1. Remove eight screws (callout 1).
NOTE: Two of these screws (callout 2) are a dierent type (machine screws) than the others.
ENWW Removal and replacement procedures 225
