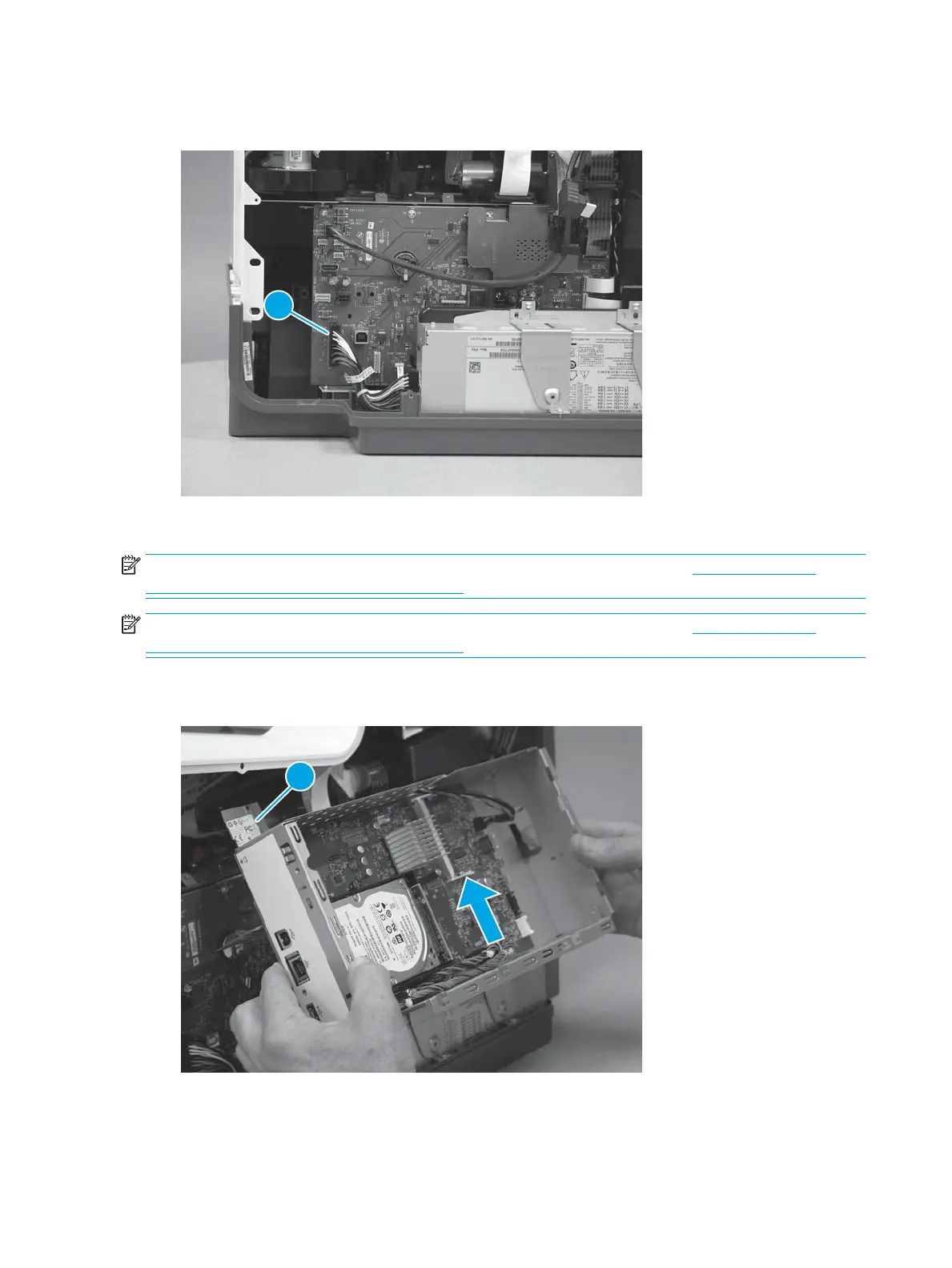

3. Connect one connector (callout 1).
Figure 1-763 Connect one connector
Step 9: Install the formatter and formatter cage (556)
NOTE: This step is for the 556 printer. For the 586 printer, skip this step and go to Step 10: Install the
formatter and formatter cage (586) on page 464.
NOTE: This step is for the 556 printer. For the 586 printer, skip this step and go to Step 10: Install the
formatter and formatter cage (586) on page 464.
1. Install the formatter and formatter cage assembly.
Figure 1-764 Disconnect connectors
462 Chapter 1 Removal and replacement ENWW
