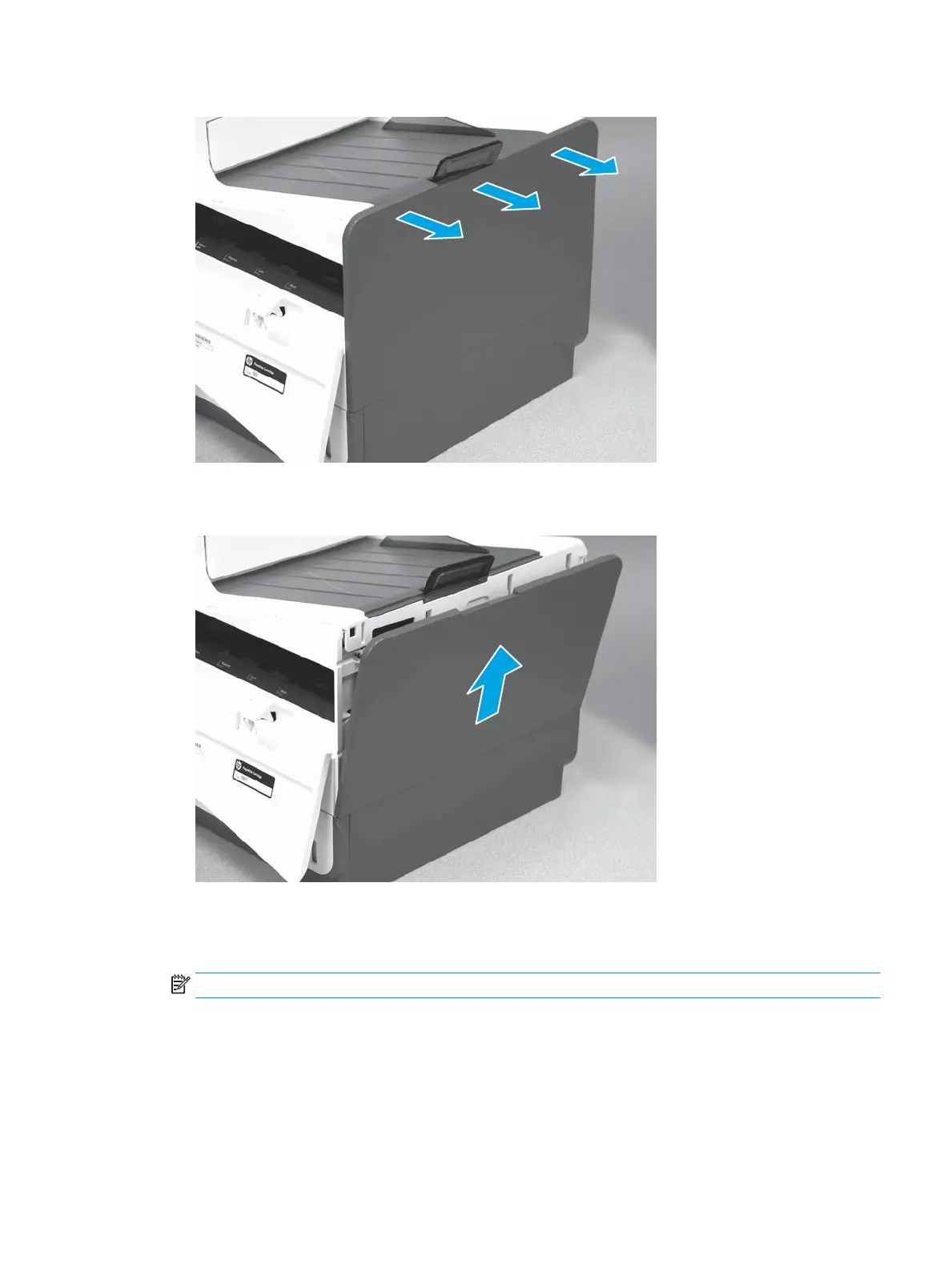

Figure 1-224 Release the right cover (outer)
2. Slide the cover up and away from the printer to remove it.
Figure 1-225 Remove the right cover (outer)
Step 5: Remove the formatter cover
▲
Remove two thumb screws (callout 1), and then slide the cover o of the printer to remove it (callout 2).
NOTE: The thumb screws are not captive and are easily lost.
ENWW Removal and replacement procedures 169
