5. Install eight screws (callout 1).
NOTE: Two of these screws (callout 2) are a dierent type (machine screws) than the others. Make sure
that they are installed in the correct position.

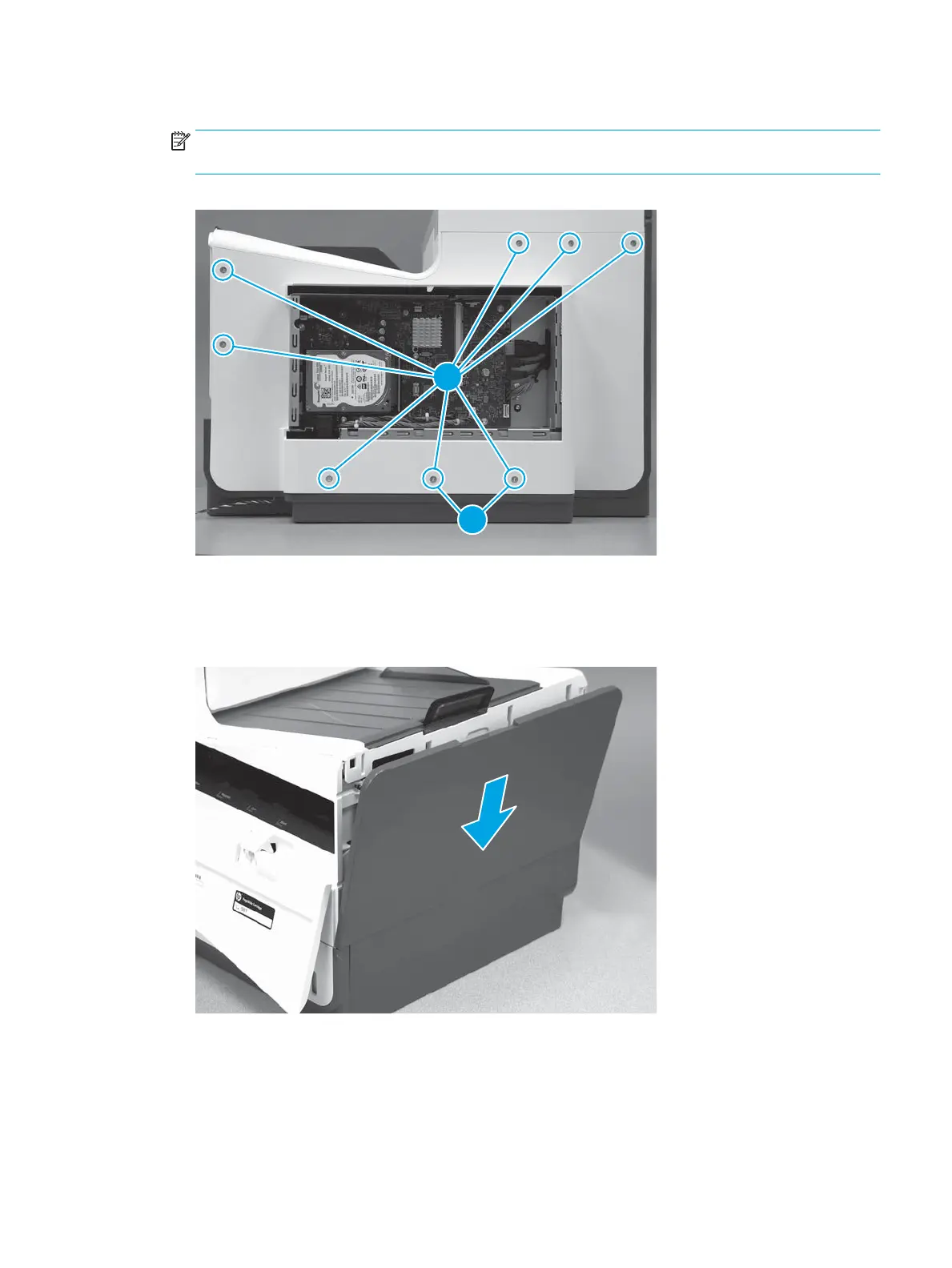

Figure 1-648 Install eight screws
Step 9: Install the right cover (outer)
1. Position the bottom edge of the cover on the printer.
Figure 1-649 Position the right cover (outer) on the printer
