3. Align the tabs on the bottom of the output bin with the slots in the right cover (inner), and then slide it to
the left to install it.

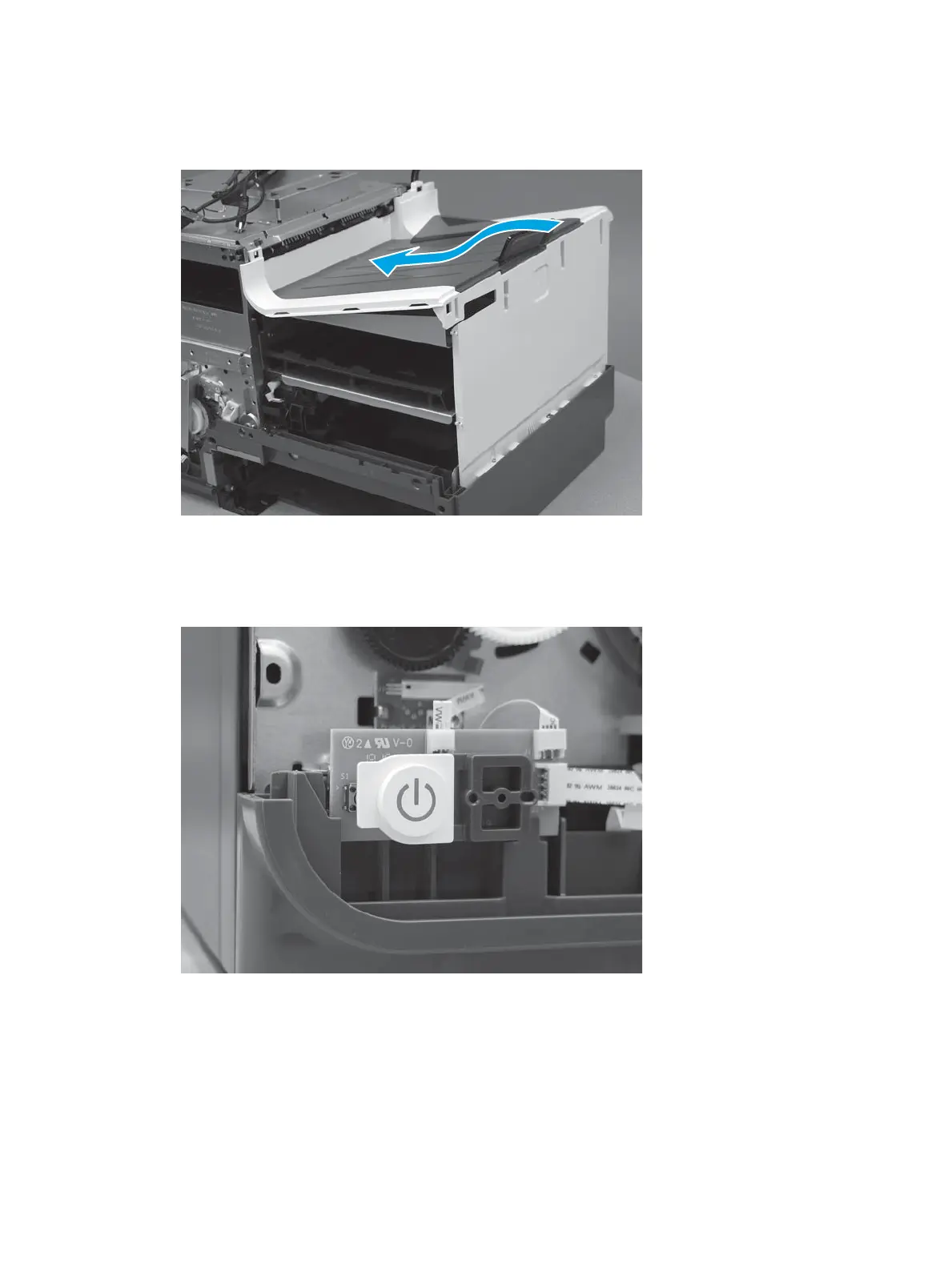

Figure 1-489 Remove the output bin
Step 15: Install the front cover
1. If the power-button cover was dislodged when the front cover was removed, install it as shown below.
Figure 1-490 Install the power-button cover
308 Chapter 1 Removal and replacement ENWW
