3. Install one screw (callout 1).

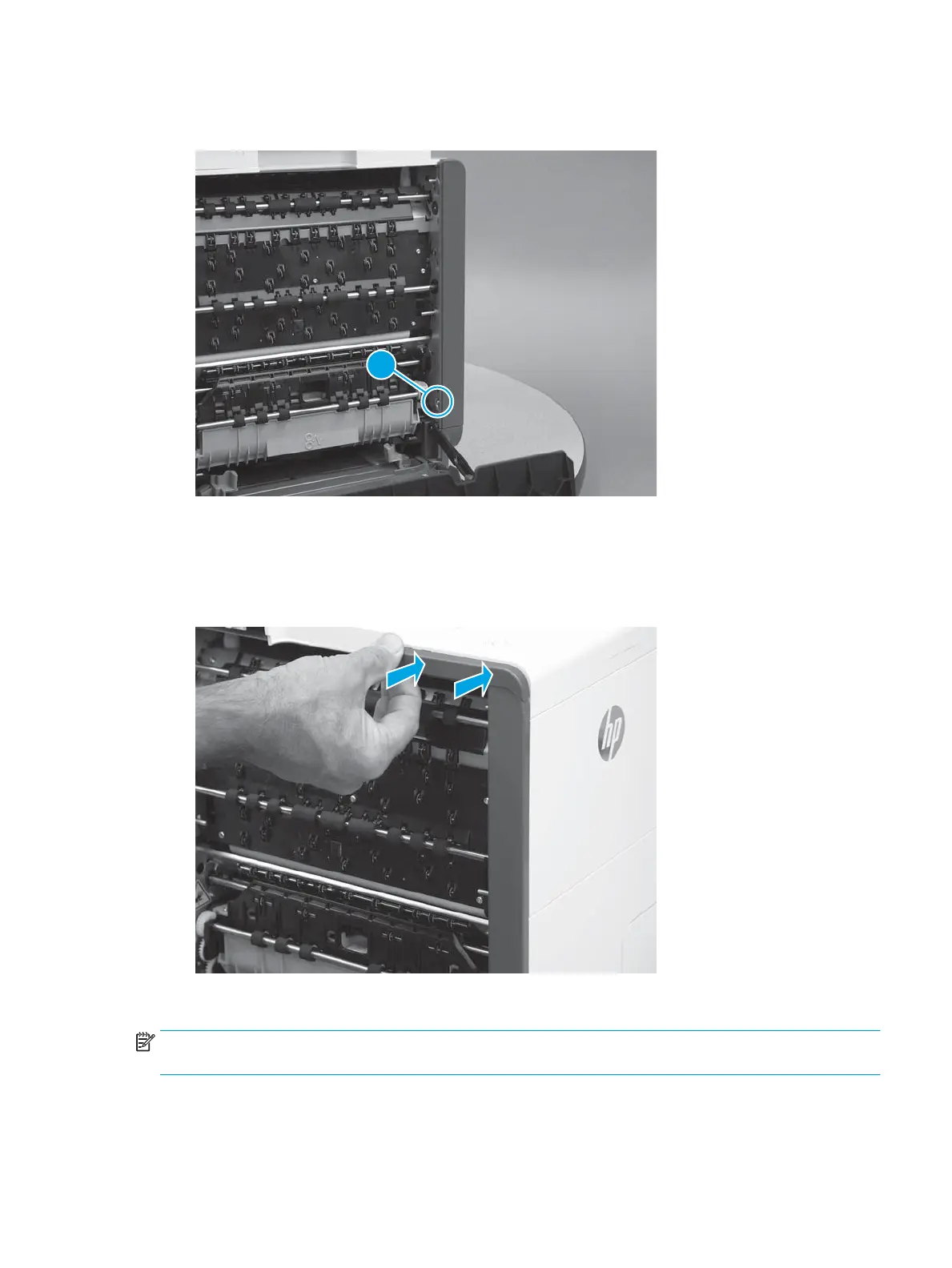

Figure 1-184 Install one screw
Step 15: Install the left-front top cover cap (556)
▲
Align the bosses on the back side of the cover with the holes in the top cover, and then push the cover
straight onto the top cover to install it.
Figure 1-185 Install the left-front top cover cap (556)
Step 16: Install the left rear cover
NOTE: The gures in this section show the 586 printer. However, the instructions for removing the cover are
valid for 556 printers.
1. Position the cover on the printer.
ENWW Removal and replacement procedures 147
