10. Position the bracket on the printer, and then slide the bracket to the right to engage it.

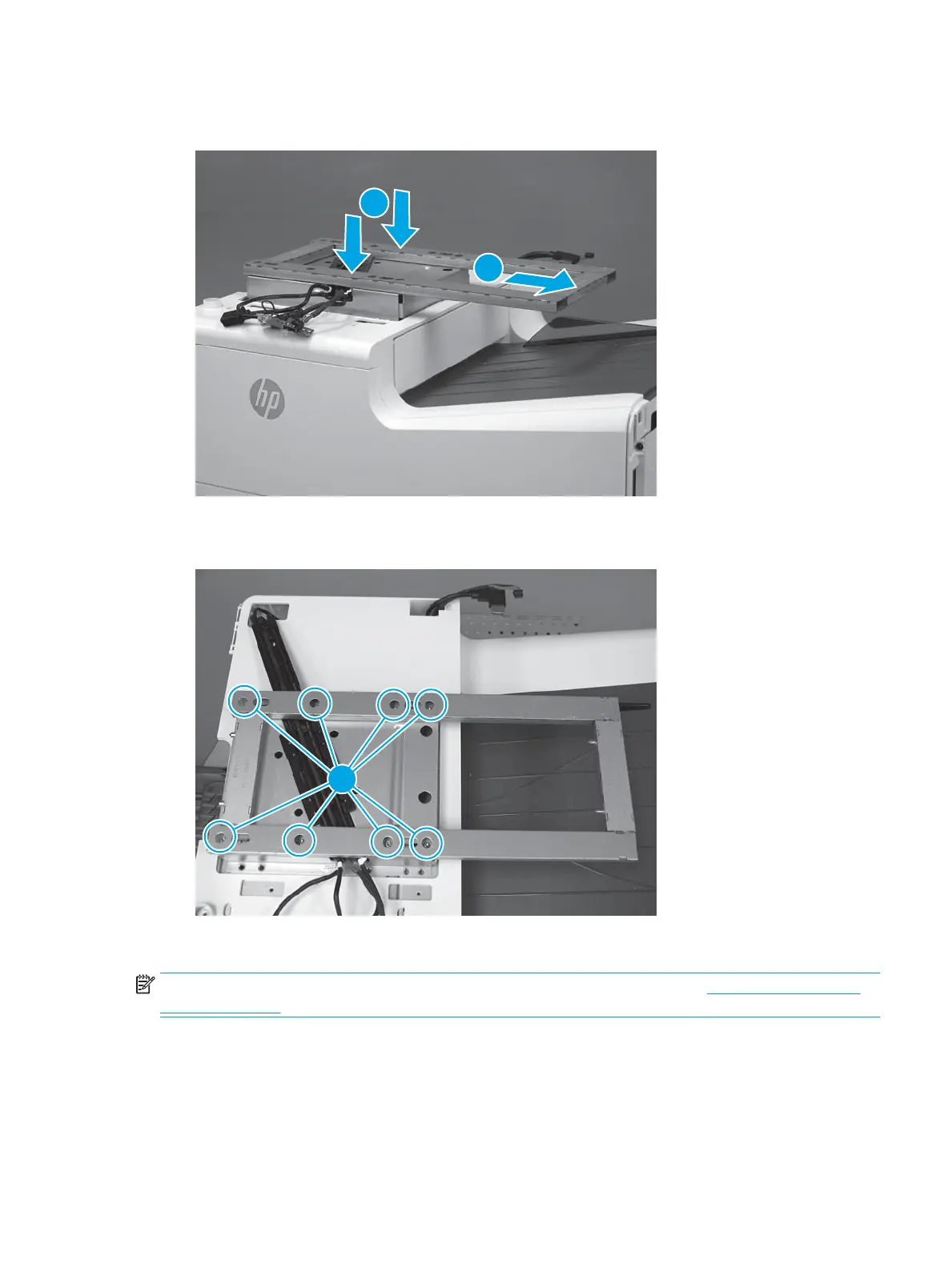

Figure 1-503 Slide the bracket right
11. Install eight screws (callout 1).
Figure 1-504 Install eight screws
Step 17: Install the top cover (556)
NOTE: This step is for the 556 printer. For the 586 printer, skip this step and go to Step 18: Install the rear
cover on page 318.
1. Optional step: If a replacement top cover is being installed, install the output bin ap by exing the
center of the ap and installing the right- and left-side hinge pins in the holes in the cover.
ENWW Removal and replacement procedures 315
