Formatter part numbers
G1W46-67911
G1W46-67912
G1W39-67914
G1W39-67939
Formatter (556) with instruction guide
Formatter (556; China) with instruction guide
Formatter (586) with instruction guide
Formatter (586; China) with instruction guide
Required tools
●
#10 Torx driver with a 152 mm (6 in) shaft and magnetized tip.
After performing service
Turn the printer power on
◦
Connect the power cable.
◦
Use the power switch to turn the power on.
Post service test
Make sure that the printer initializes to a Ready state.
Print a conguration page to make sure that the printer is functioning correctly.
Step 1: Remove the formatter cover
▲
Remove two thumb screws (callout 1), and then slide the cover o of the printer to remove it (callout 2).
NOTE: The thumb screws are not captive and are easily lost.

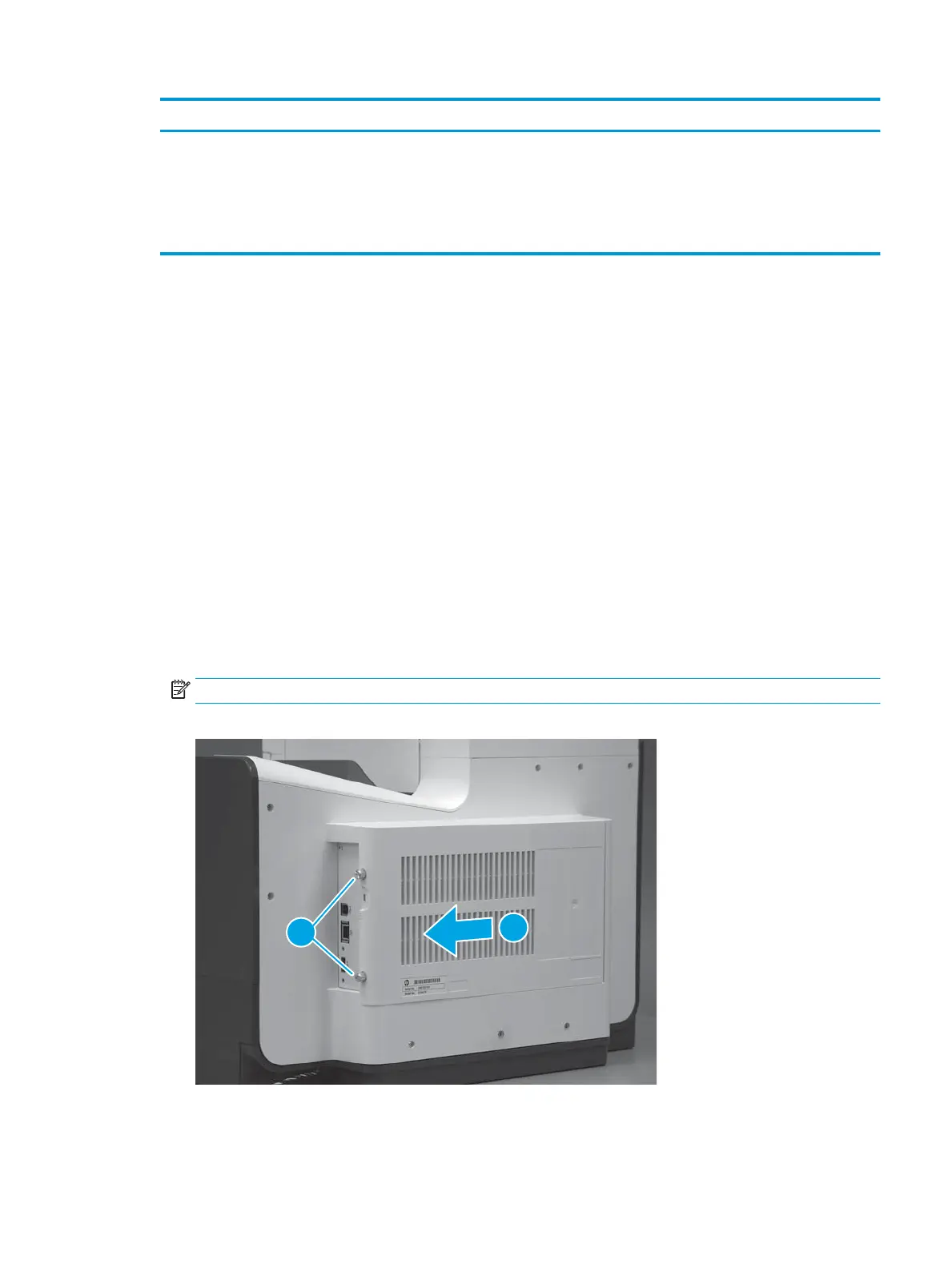

Figure 1-576 Remove the formatter cover
