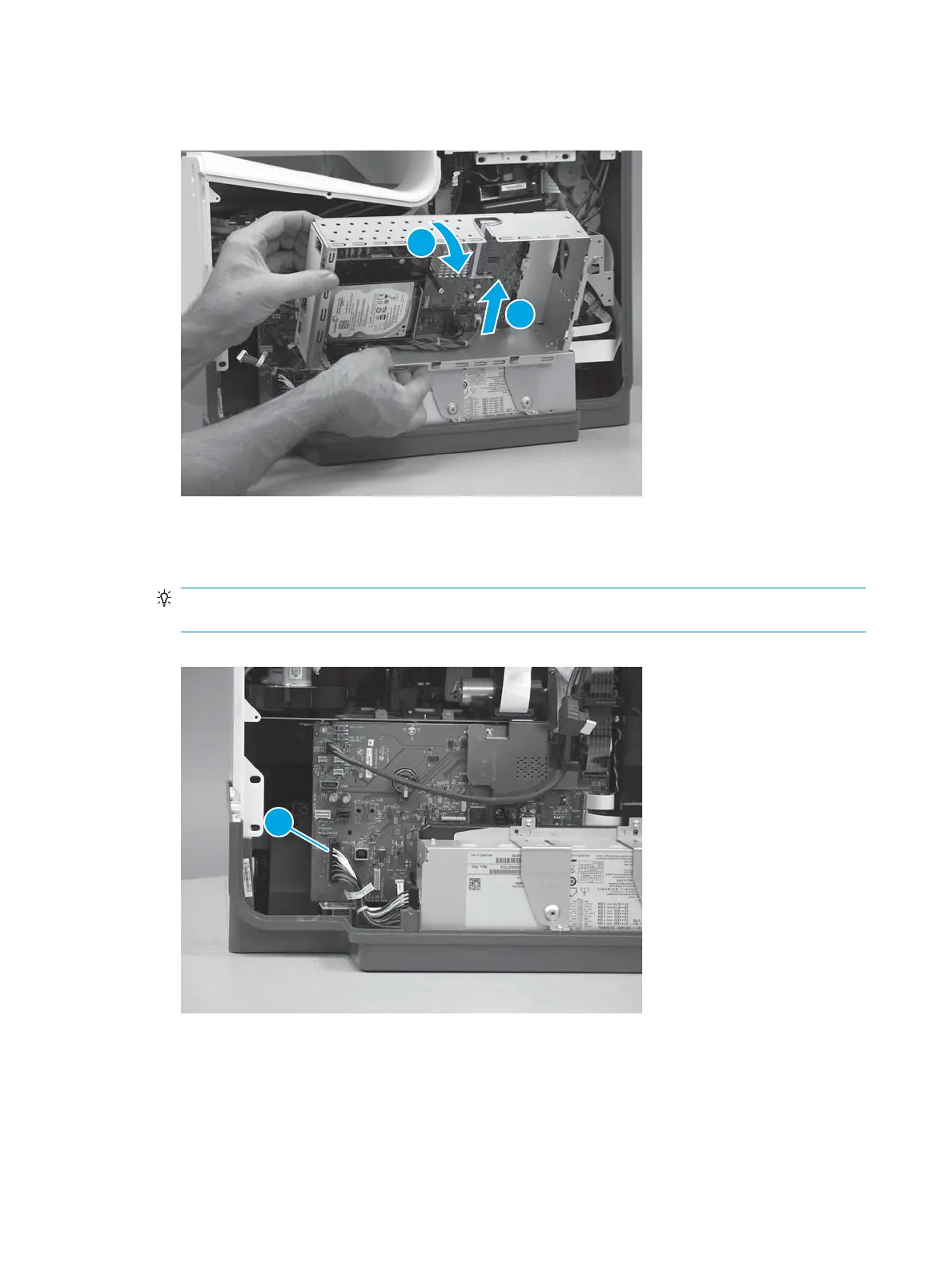

5. Rotate the top of the assembly out and away from the printer, and then remove the assembly.

Figure 1-807 Remove the formatter and cage

Step 10: Remove the power supply (DU)

1. Disconnect one connector (callout 1)

TIP: This connector might take more than normal force to disconnect connect. Release a small locking

tab while pulling the connector straight out to remove it.

Figure 1-808 Disconnect one connector

490 Chapter 1 Removal and replacement ENWW
