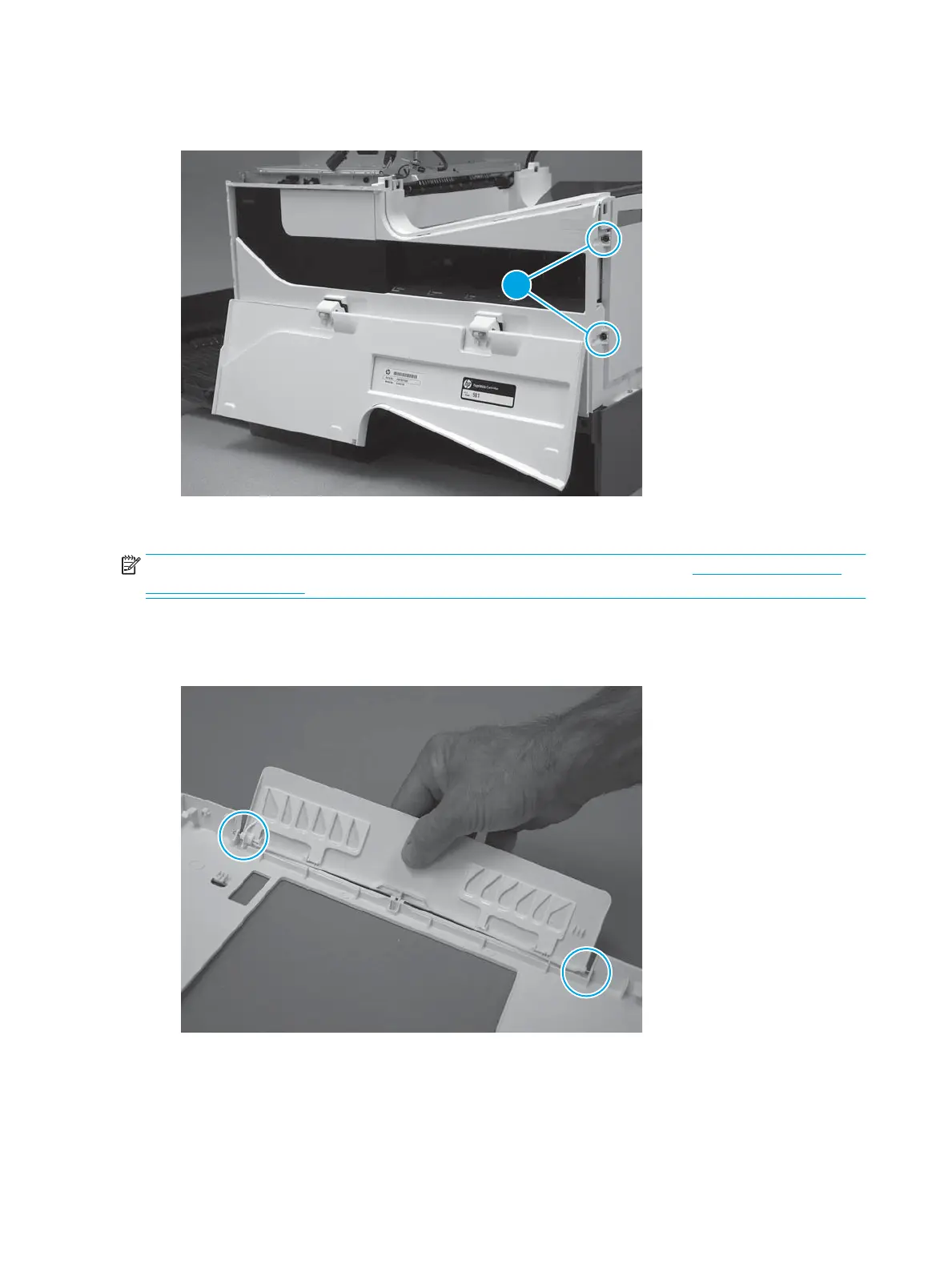

4. Install two screws (callout 1).
Figure 1-493 Install two screws
Step 16: Install the top cover (586)
NOTE: This step is for the 586 printer. For the 556 printer, skip this step and go to Step 17: Install the top
cover (556) on page 315.
1. Optional step: If a replacement top cover is being installed, install the output bin ap by exing the
center of the ap and installing the right- and left-side hinge pins in the holes in the cover.
Figure 1-494 Install the output bin ap
310 Chapter 1 Removal and replacement ENWW
