2. Push in along the top edge of the right cover (outer) to install it.

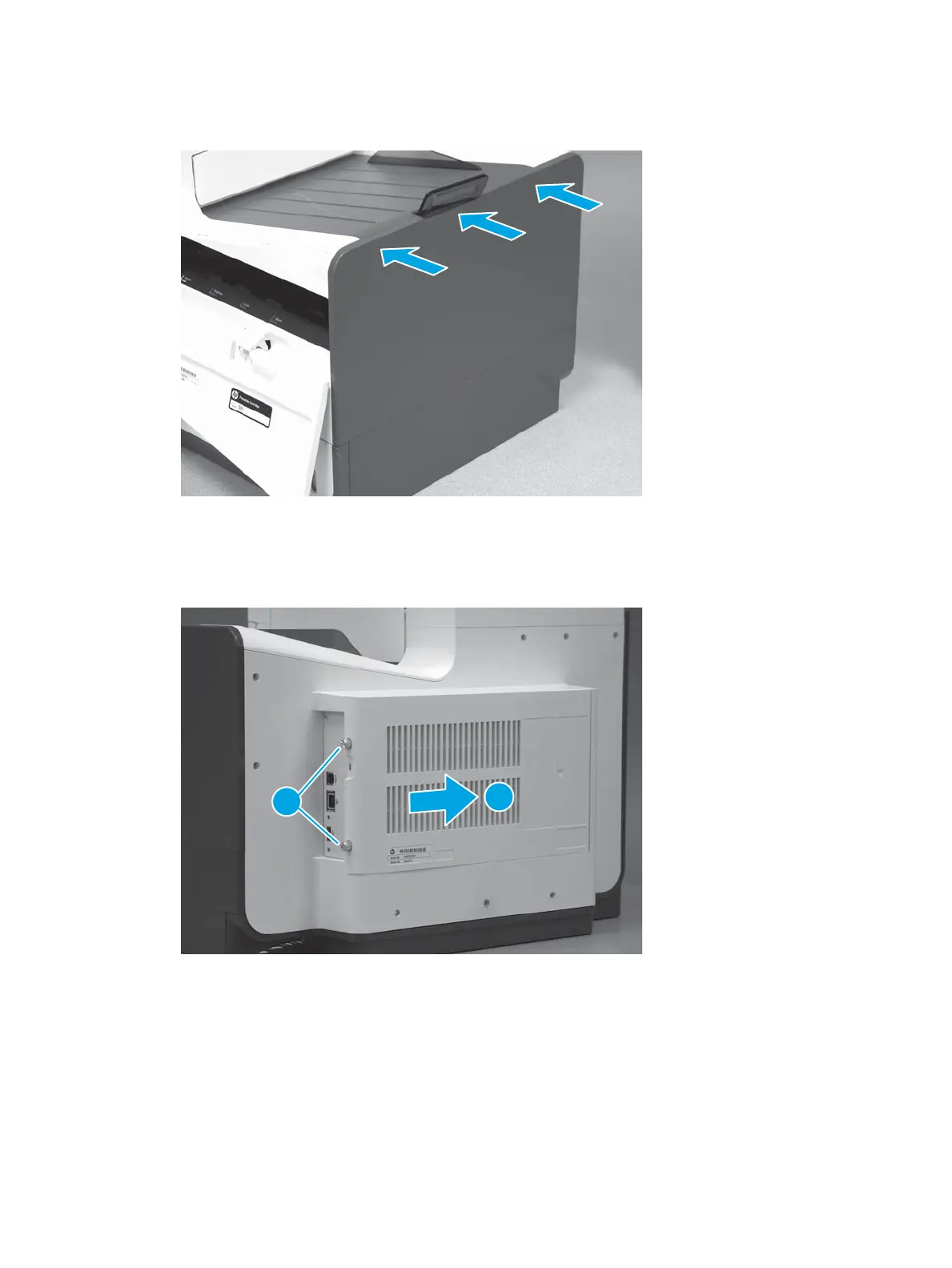

Figure 1-650 Install the right cover (outer)
Step 10: Install the formatter cover
▲
Slide the cover onto the printer (callout 1) to install it, and then install two thumb screws (callout 2).
Figure 1-651 Install the formatter cover
Step 11: Install the SCB cover
1. Align the tabs on the back side of the SCB cover with the slots in the printer.
400 Chapter 1 Removal and replacement ENWW
