2. Unpack the replacement part from the packaging.
CAUTION: If the replacement part is a roller or pad, avoid touching the spongy part of it. Skin oils on
the roller or pad can cause paper pickup and/or print-quality problems. HP recommends using
disposable gloves when handling rollers or pads or washing your hands or before touching rollers or
pads.
IMPORTANT: Make sure that all of the shipping materials (for example shipping tape) are removed
from the replacement part prior to installation.
Step 4: Install the document feeder assembly (M586)

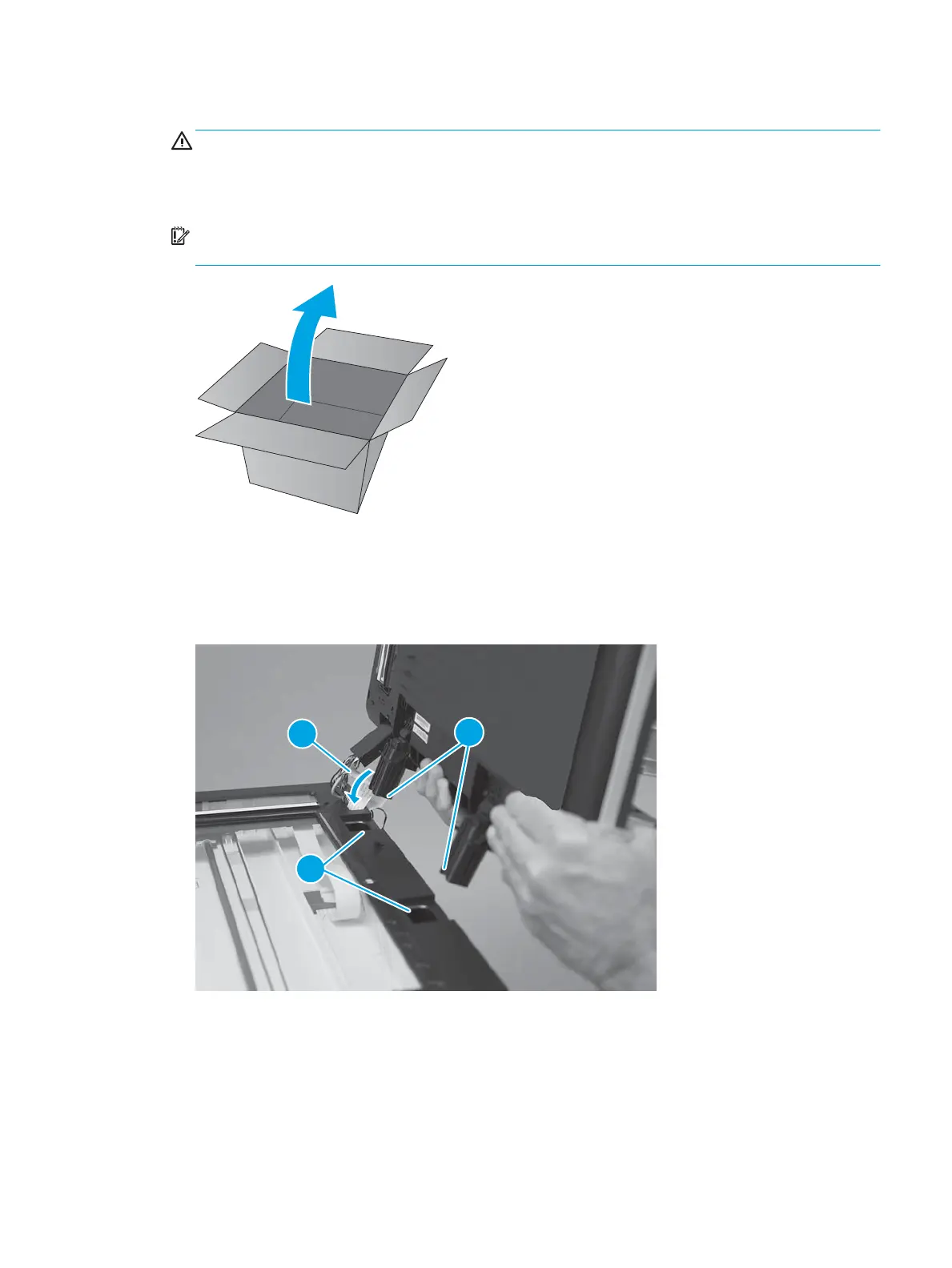

1. Pass the at cable and wire harness on the replacement document feeder through the hole in the
scanner chassis (callout 1), and then align the hinges (callout 2) with the slots (callout 3) in the chassis.
Figure 1-611 Align the hinges
