Step 4: Remove the left rear cover
NOTE: The gures in this section show the 586 printer. However, the instructions for removing the cover are
valid for 556 printers.
1. Remove two screws (callout 1).

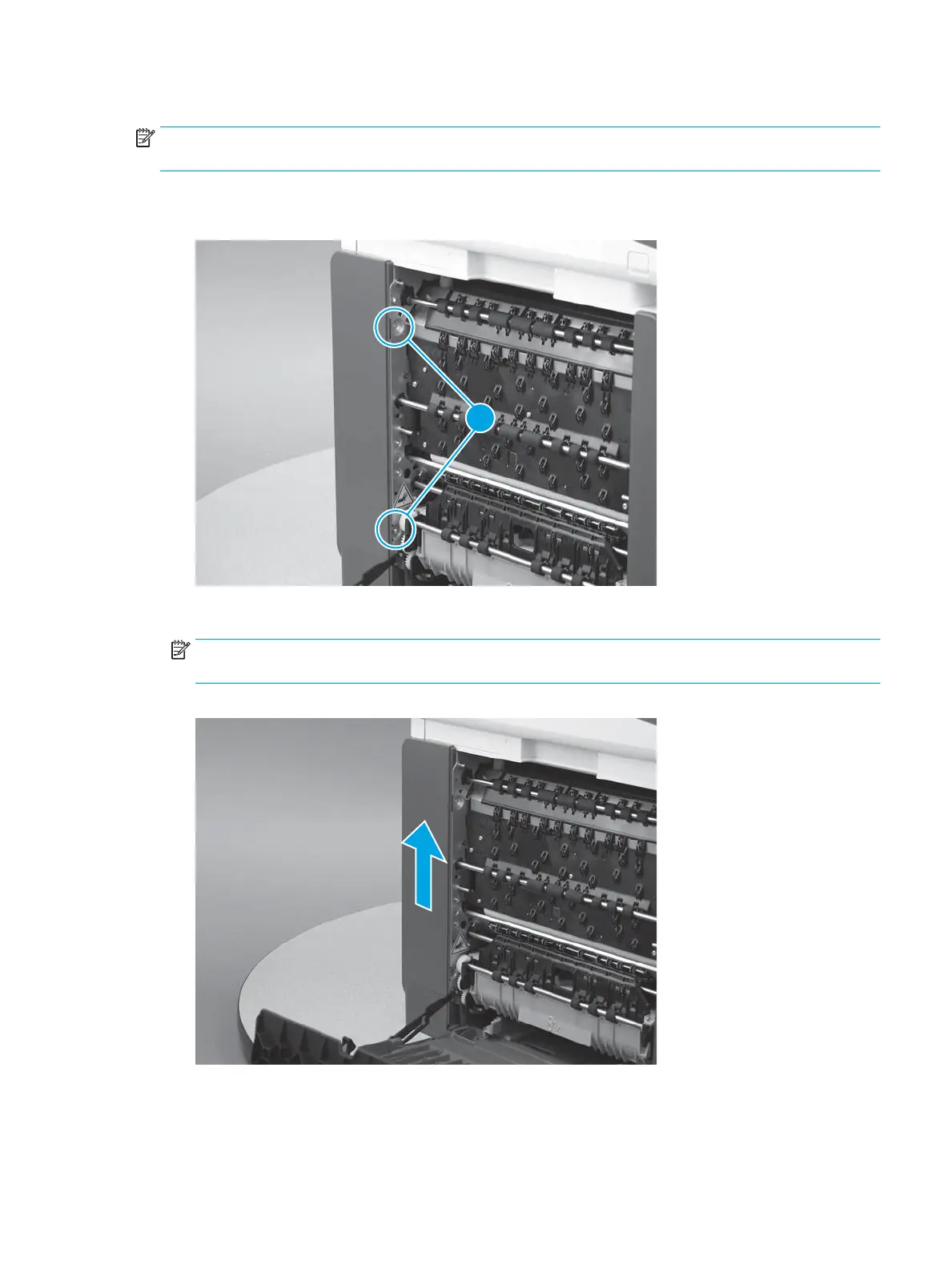

Figure 1-321 Remove two screws
2. Release the cover by sliding it up about 10 mm (0.4 in).
NOTE: This cover can be very diicult to release. It might be easier to use a at-blade screwdriver to
pry the bottom edge of the cover up and away from the chassis.
Figure 1-322 Release the cover
ENWW Removal and replacement procedures 221
