Required tools
●
Small at-blade screwdriver.
●
#10 Torx driver with a 152 mm (6 in) shaft and magnetized tip.
After performing service
Turn the printer power on
◦
Connect the power cable.
◦
Use the power switch to turn the power on.
Post service test
No post service test are available for this assembly.
Step 1: Removal the control panel (556)
1. Tilt the control panel to the fully raised position.

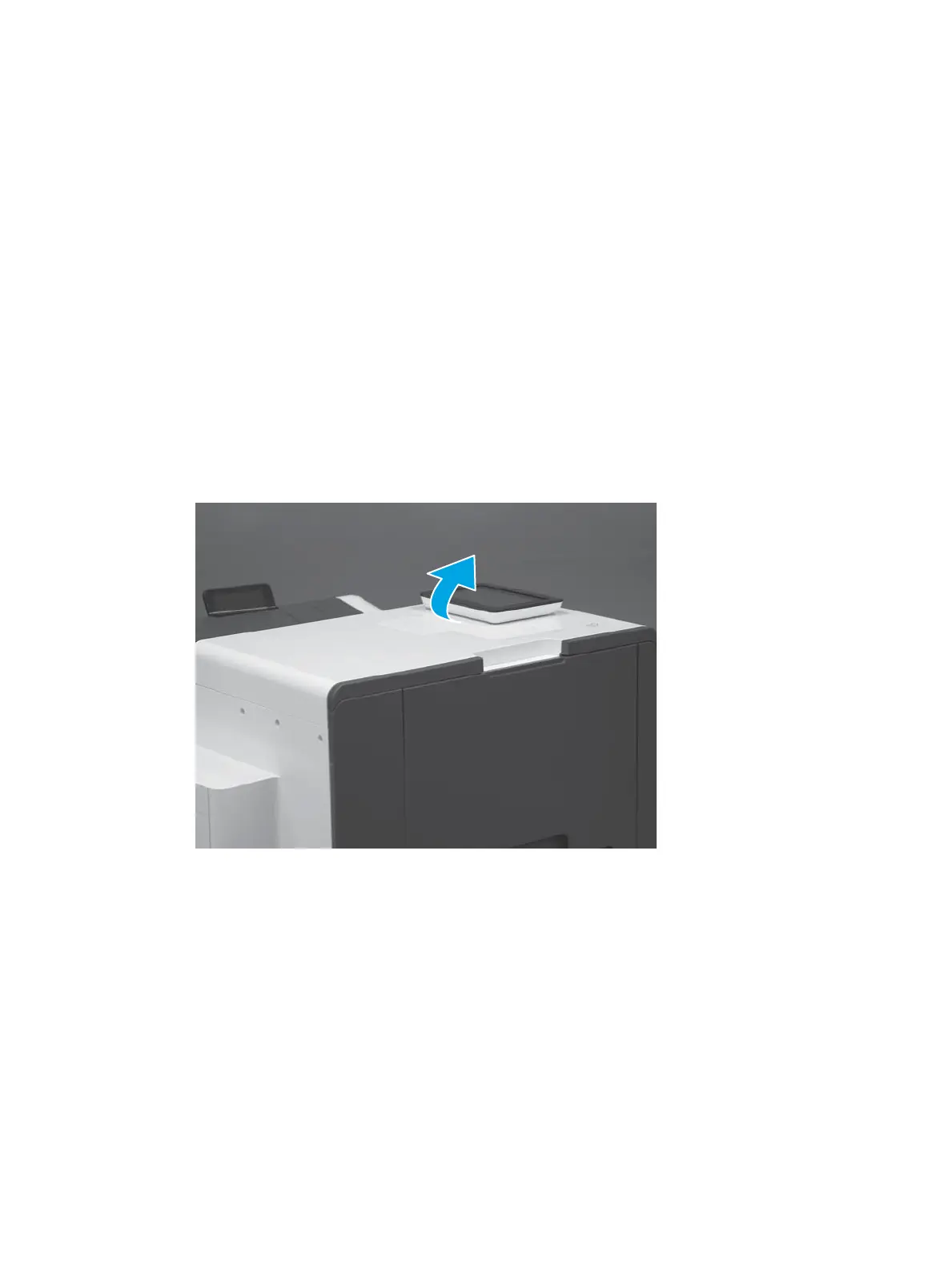

Figure 1-141 Tilt the control panel up
ENWW Removal and replacement procedures 125
