2. Push the cover straight in to install it.

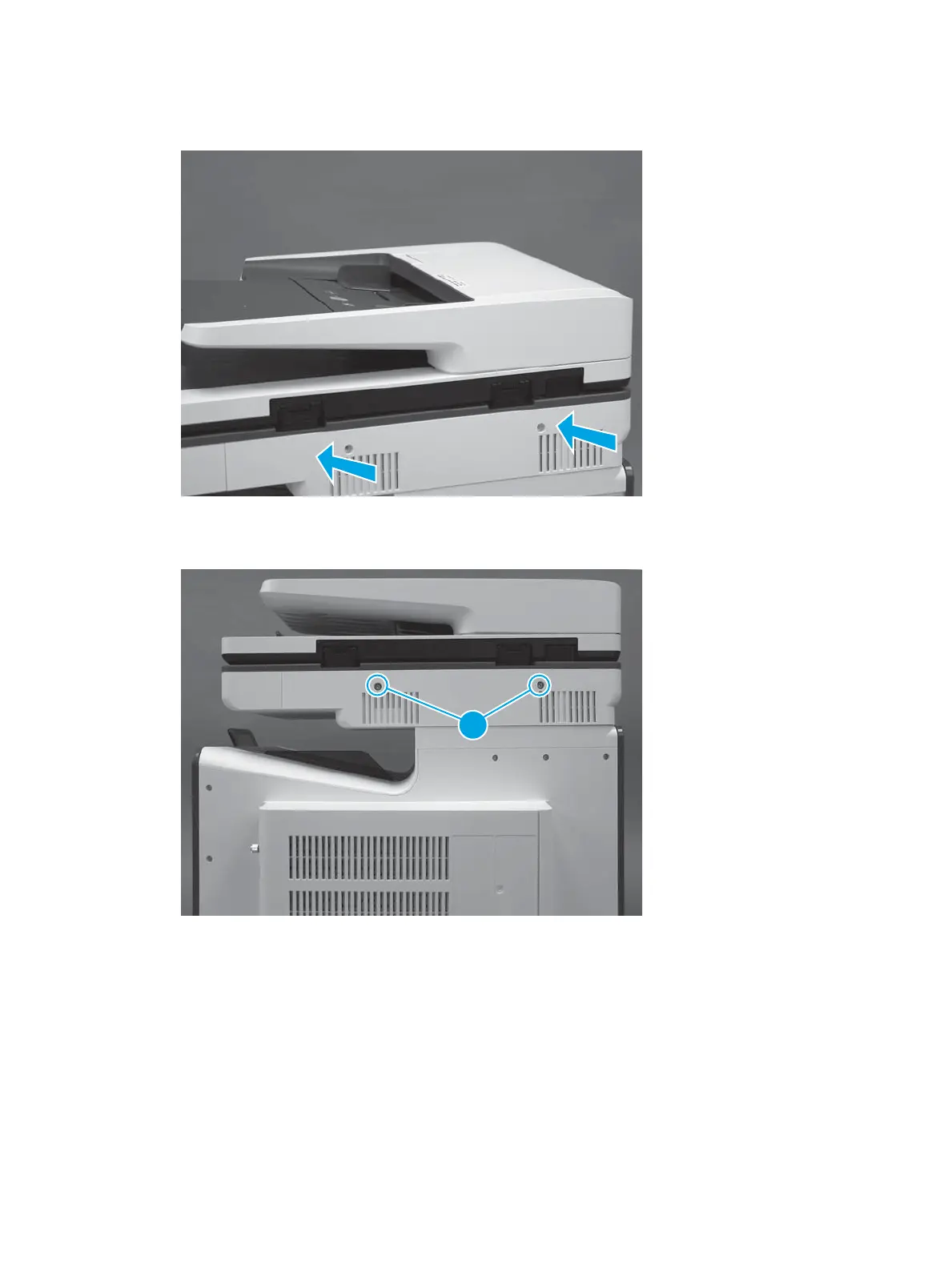

Figure 1-728 Install the SCB cover
3. Install two screws (callout 1).
Figure 1-729 Install two screws
Step 18: Install the control panel (556)
The HP PageWide Enterprise Color MFP 586z printer is shown in this guide, however the control-panel
replacement procedure is valid for all of the 586 printers. The 586dn and 586f printers do not have a key
board.
1. Locate the four hooks on the SSA chassis (callout 1) and the matching slots in the control-panel base
(callout 2). The hooks t into the slots (callout 3) when the assembly is installed.
