HP PageWide Enterprise Color 556

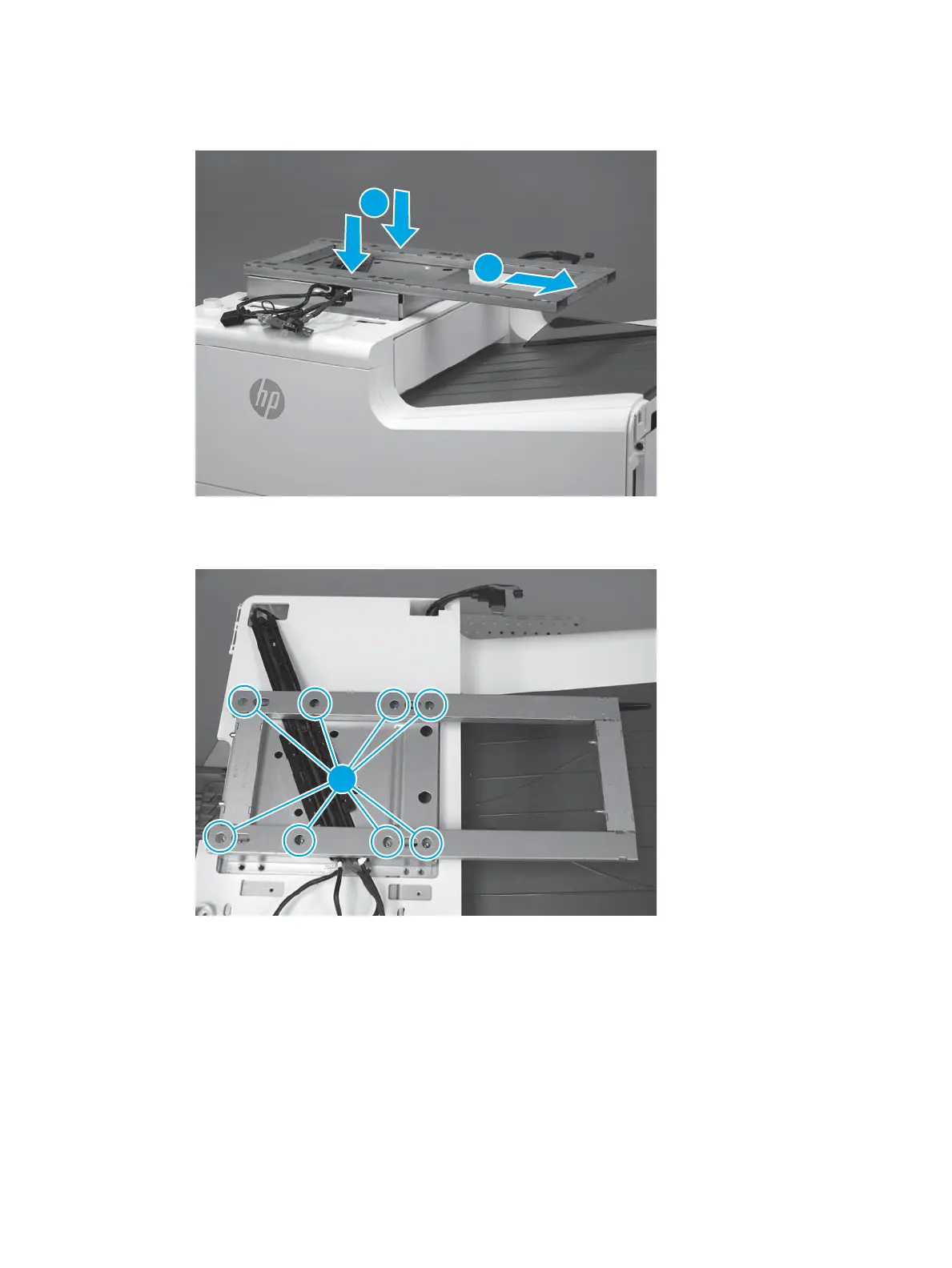

10. Position the bracket on the printer, and then slide the bracket to the right to engage it.
Figure 1-250 Slide the bracket right
1
2
11. Install eight screws (callout 1).
Figure 1-251 Install eight screws
1
Step 10: Install the rear cover
1. Before proceeding, take note of the tabs and bosses on the rear cover.
ENWW Removal and replacement procedures 183
