Parts and diagrams: Document feeder and scanner whole units
(586)
The gures below show the component parts of the printer. A parts list table follows each exploded view
assembly diagram. Each table lists the item number, the associated part number, and the description of each
part. If a part is not listed in the table, then it is not a eld replacement unit (FRU).
Exploded view and parts list

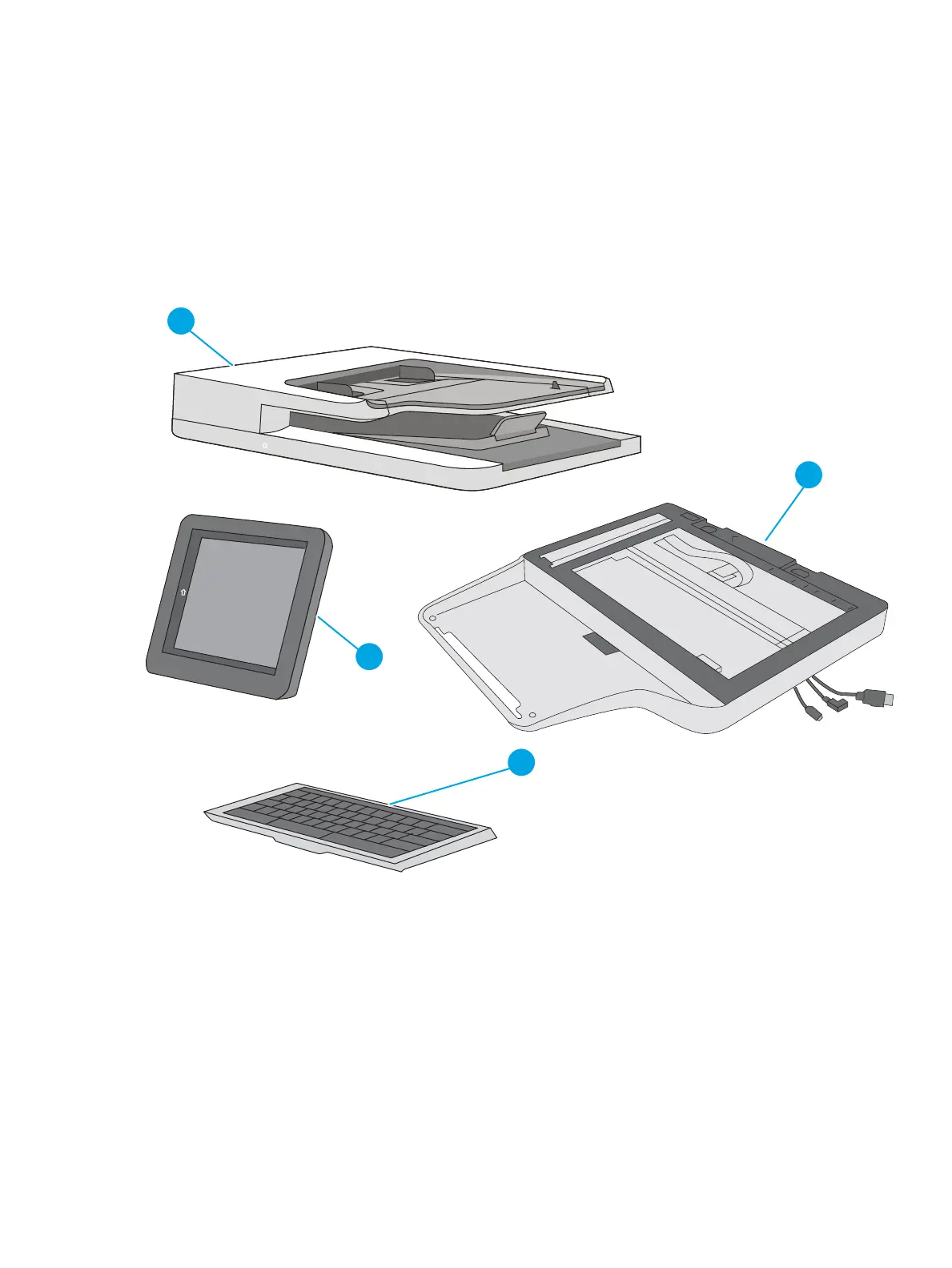

Figure 2-1 Document feeder and scanner (586)
622 Chapter 2 Parts and diagrams ENWW
