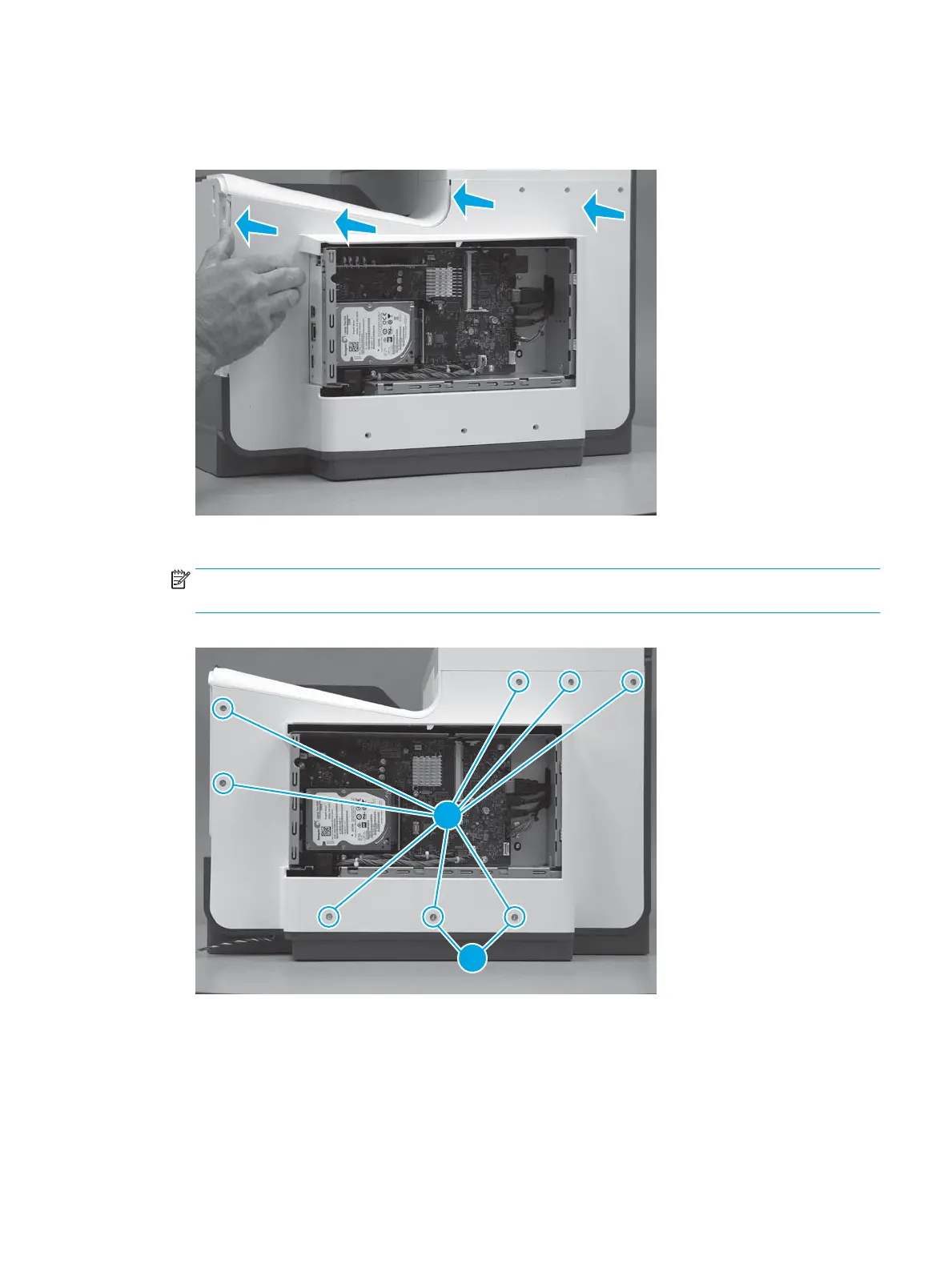

4. Starting at the right upper corner of the cover and working toward the left, push in along the top edge of
the cover to engage the bosses along the top of the cover.
Figure 1-136 Release the top edge of the cover
5. Install eight screws (callout 1).
NOTE: Two of these screws (callout 2) are a dierent type (machine screws) than the others. Make sure
that they are installed in the correct position.
Figure 1-137 Install eight screws
Step 6: Install the formatter cover
▲
Slide the cover onto the printer (callout 1) to install it, and then install two thumb screws (callout 2).
ENWW Removal and replacement procedures 121
