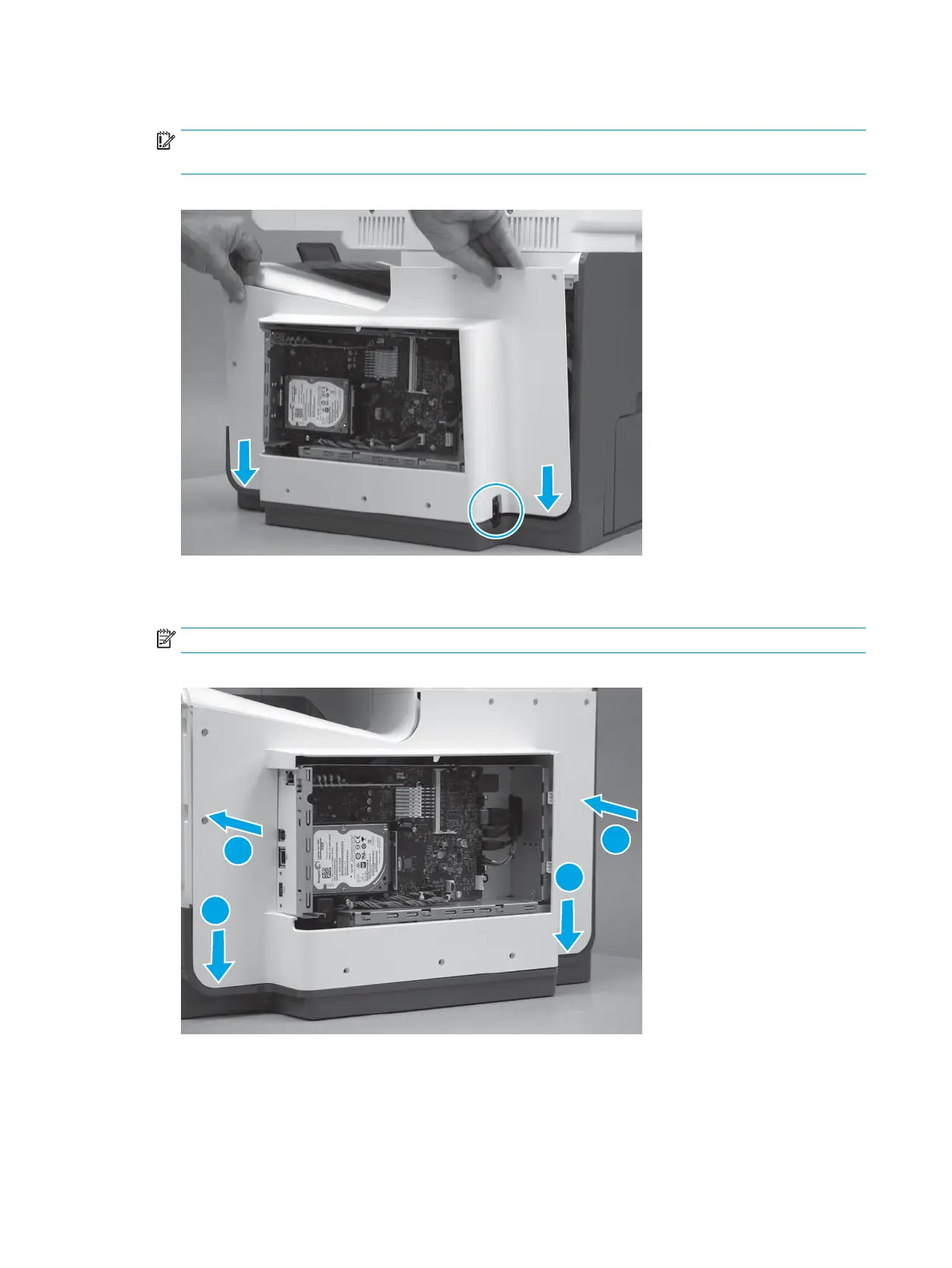

2. Position the bottom edge of the cover on the printer.
IMPORTANT: Make sure that the inner two tabs on the cover bottom corners engages with the printer
chassis, and that the slot in the cover is tted correctly over the power supply receptacle.
Figure 1-134 Install cover
3. Starting at the bottom of the cover and working upward, push in along the edges of the cover to engage
the bosses along the right and left side of the cover (callout 1).
NOTE: Make sure that the bottom edge of the cover (callout 2) remains engaged.
Figure 1-135 Engage the sides of the cover
120 Chapter 1 Removal and replacement ENWW
