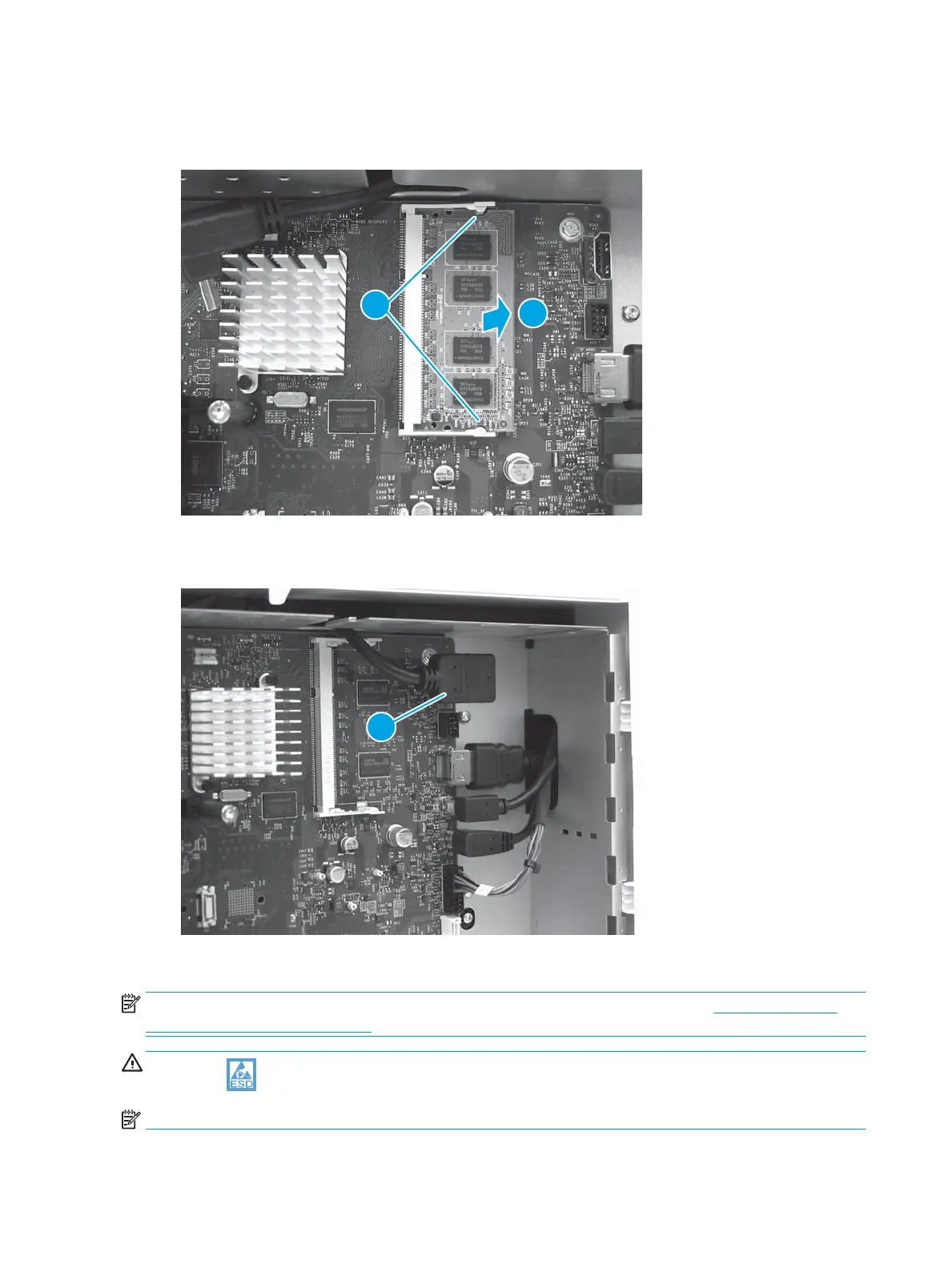

2. Rotate the right edge of the DIMM toward the holder (callout 1). Make sure that the two locking arms
(callout 2) snap into place.
Figure 1-594 Seat the SODIMM
3. 586 models only: Connect one connector (callout 1)
Figure 1-595 Disconnect one connector (586)
Step 10: Install the embedded MultiMedia Card (eMMC)
NOTE: 556dn models only. For all other printers and models, skip this step and go to Step 11: Install the
hard-disk drive (HDD) on page 367.
CAUTION: ESD-sensitive part.
NOTE: M506 (all) and M527dn printers only.
366 Chapter 1 Removal and replacement ENWW
