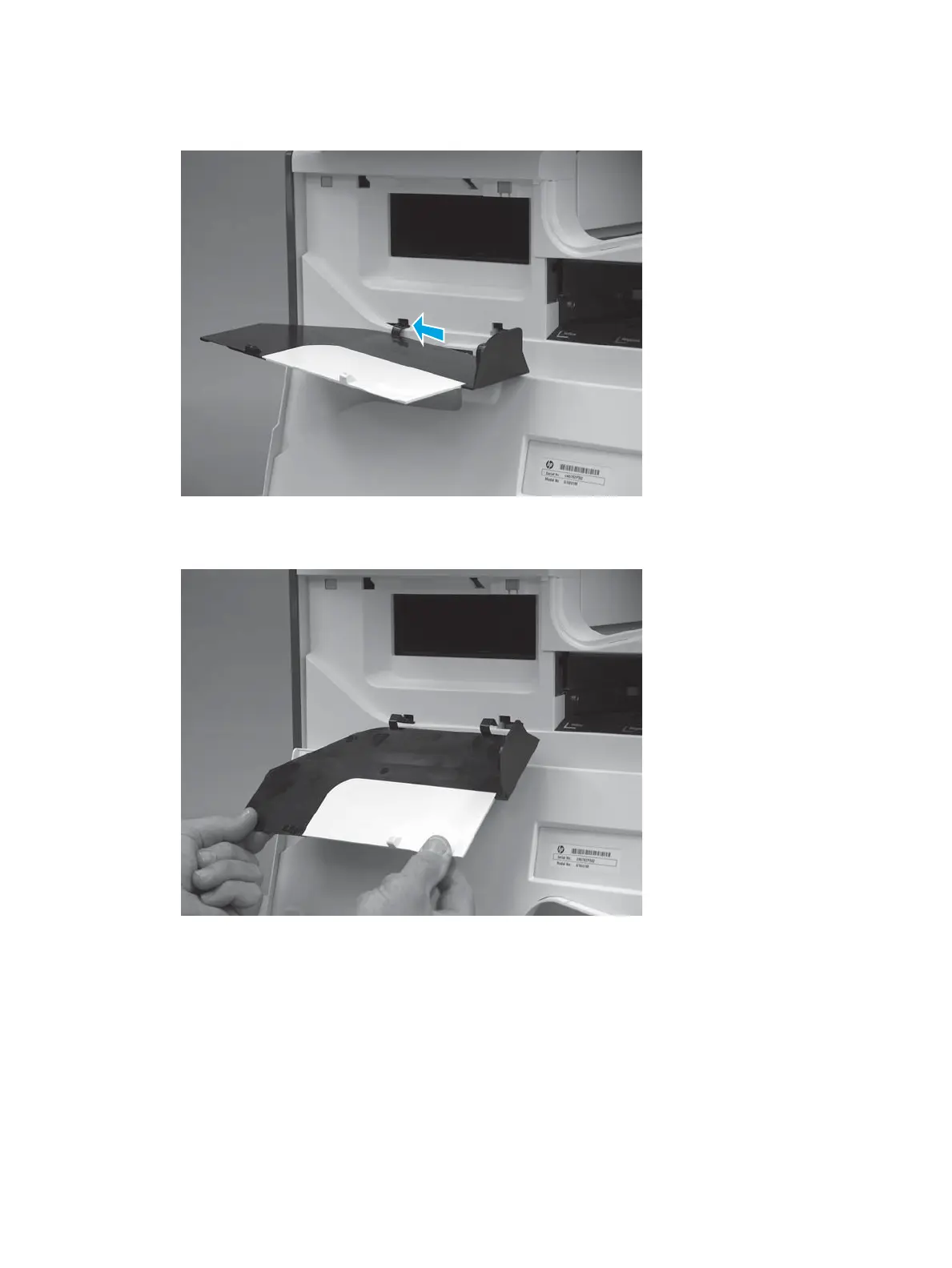

3. Slide the cover to the left to release the left-side hinge.
Figure 1-815 Slide the cover to the left
4. Remove the blank cover.
Figure 1-816 Remove the blank cover
Step 13: Removal the control panel (DU)
1. Tilt the control panel to the fully raised position.
494 Chapter 1 Removal and replacement ENWW
