2. Push in along the top edge of the right cover (outer) to install it.

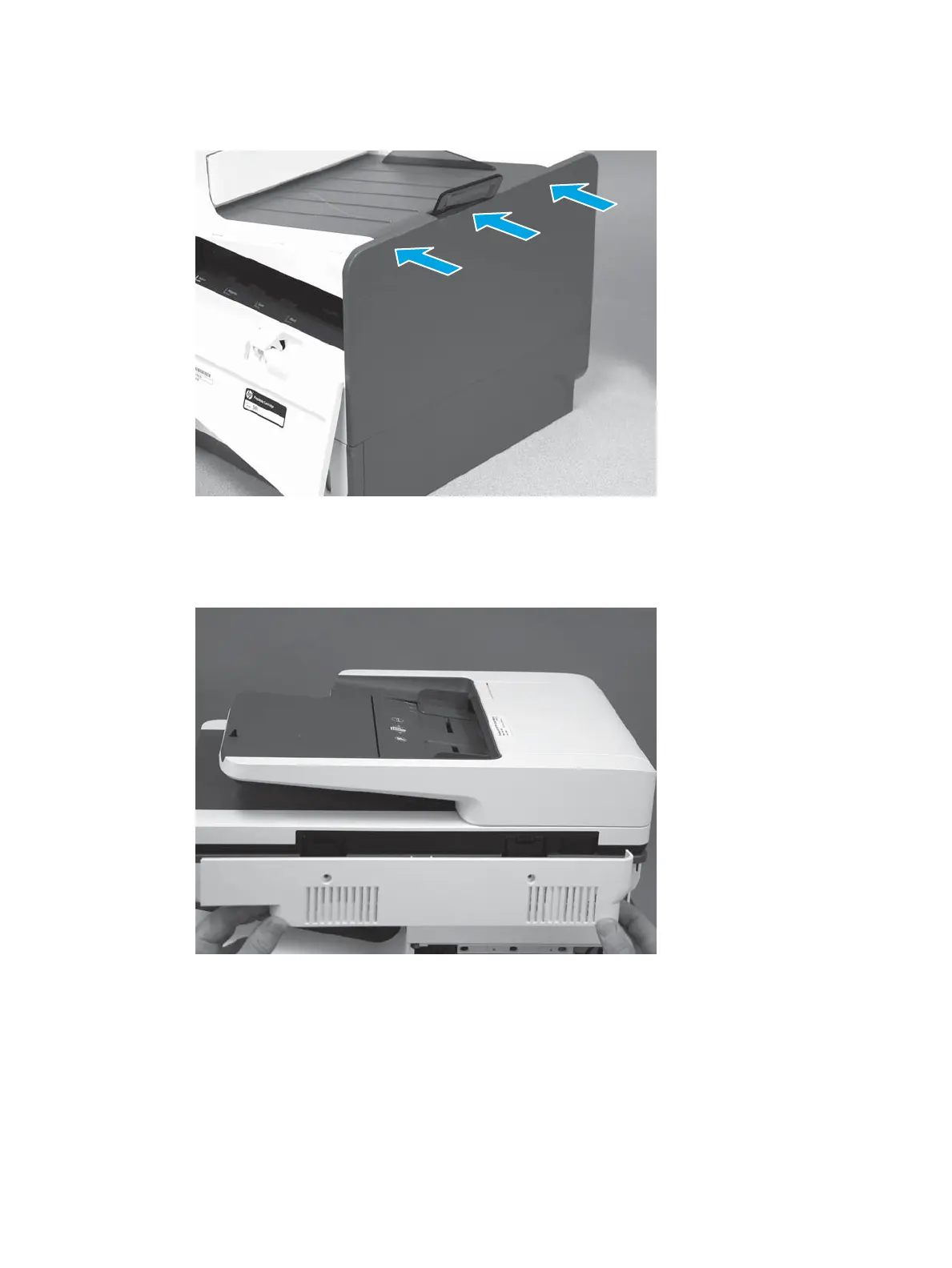

Figure 1-726 Install the right cover (outer)
Step 17: Install the SCB cover
1. Align the tabs on the back side of the SCB cover with the slots in the printer.
Figure 1-727 Align the SCB cover tabs and printer slots
ENWW Removal and replacement procedures 441
