After performing service
Turn the printer power on
◦
Connect the power cable.
◦
Use the power switch to turn the power on.
Post service test
Make sure that the printer initializes to a Ready state.
Access the menus by using the printer control panel, and then print a conguration page to make sure that
the printer is functioning correctly.
Step 1: Remove the scanner control board (SCB) cover
1. At the back of the printer, remove two screws (callout 1).

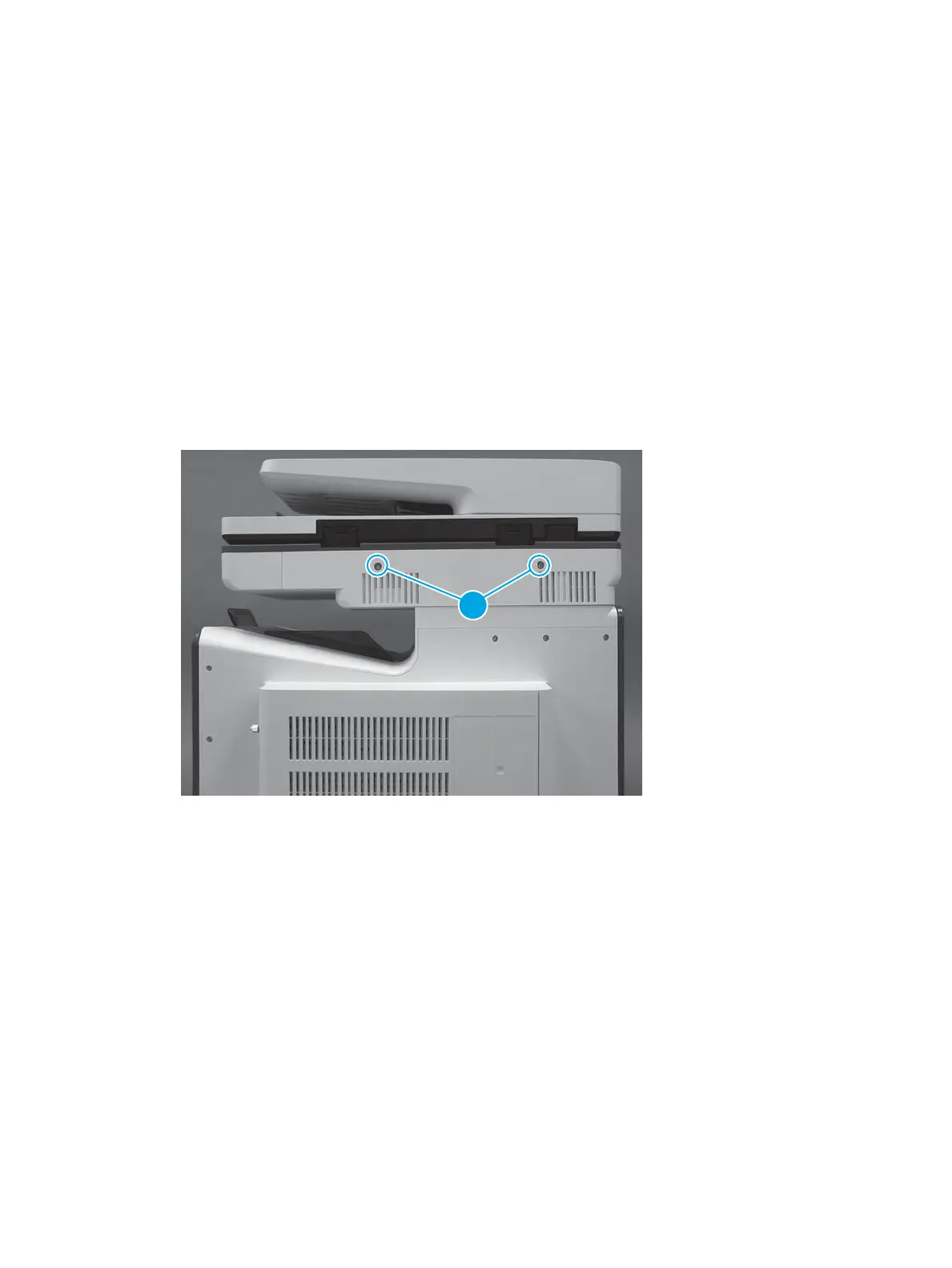

Figure 1-621 Remove two screws
384 Chapter 1 Removal and replacement ENWW
