5. Install eight screws (callout 1).
NOTE: Two of these screws (callout 2) are a dierent type (machine screws) than the others. Make sure
that they are installed in the correct position.

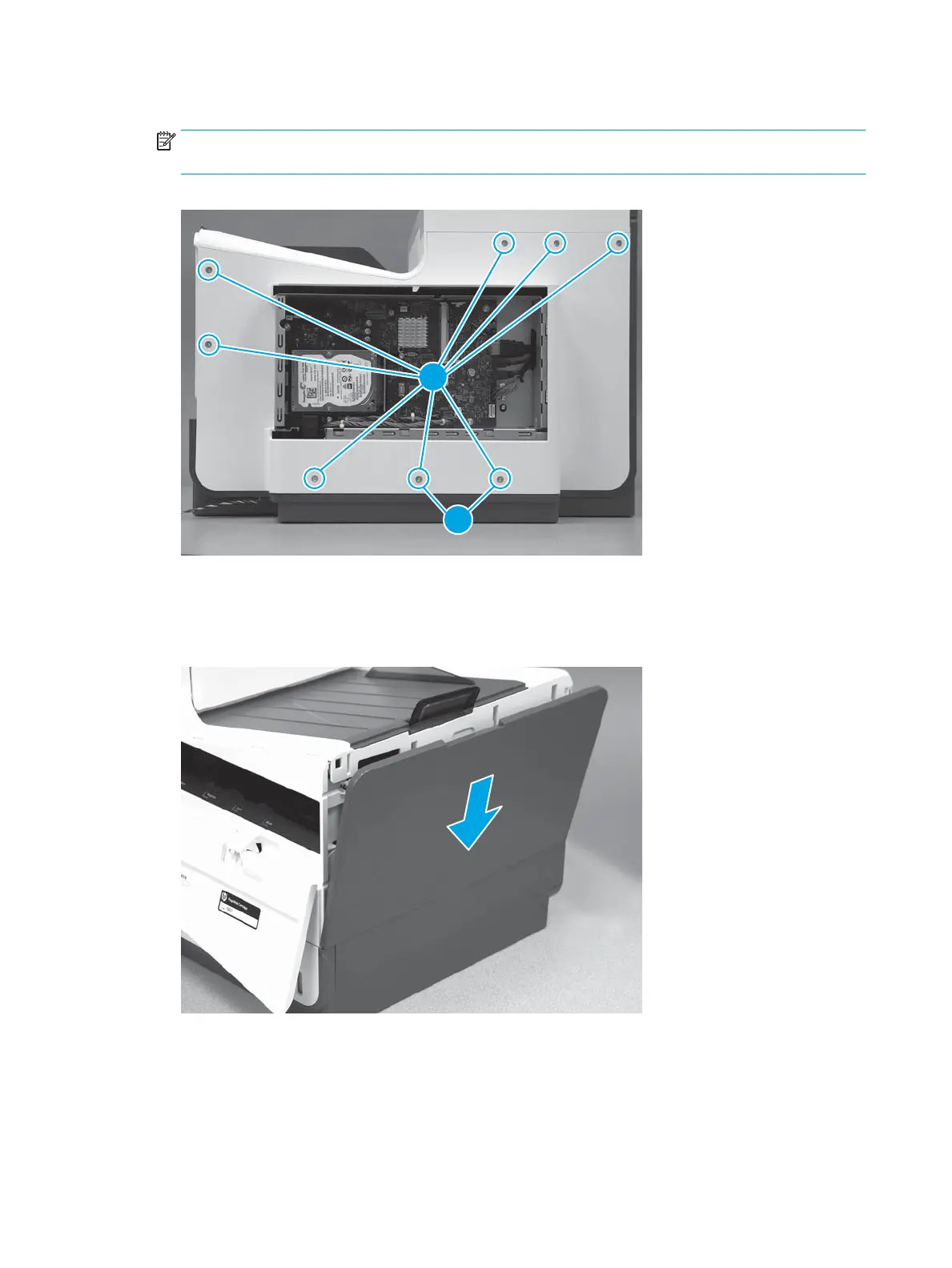

Figure 1-847 Install eight screws
Step 20: Install the right cover (outer) (PM)
1. Position the bottom edge of the cover on the printer.
Figure 1-848 Position the right cover (outer) on the printer
510 Chapter 1 Removal and replacement ENWW
