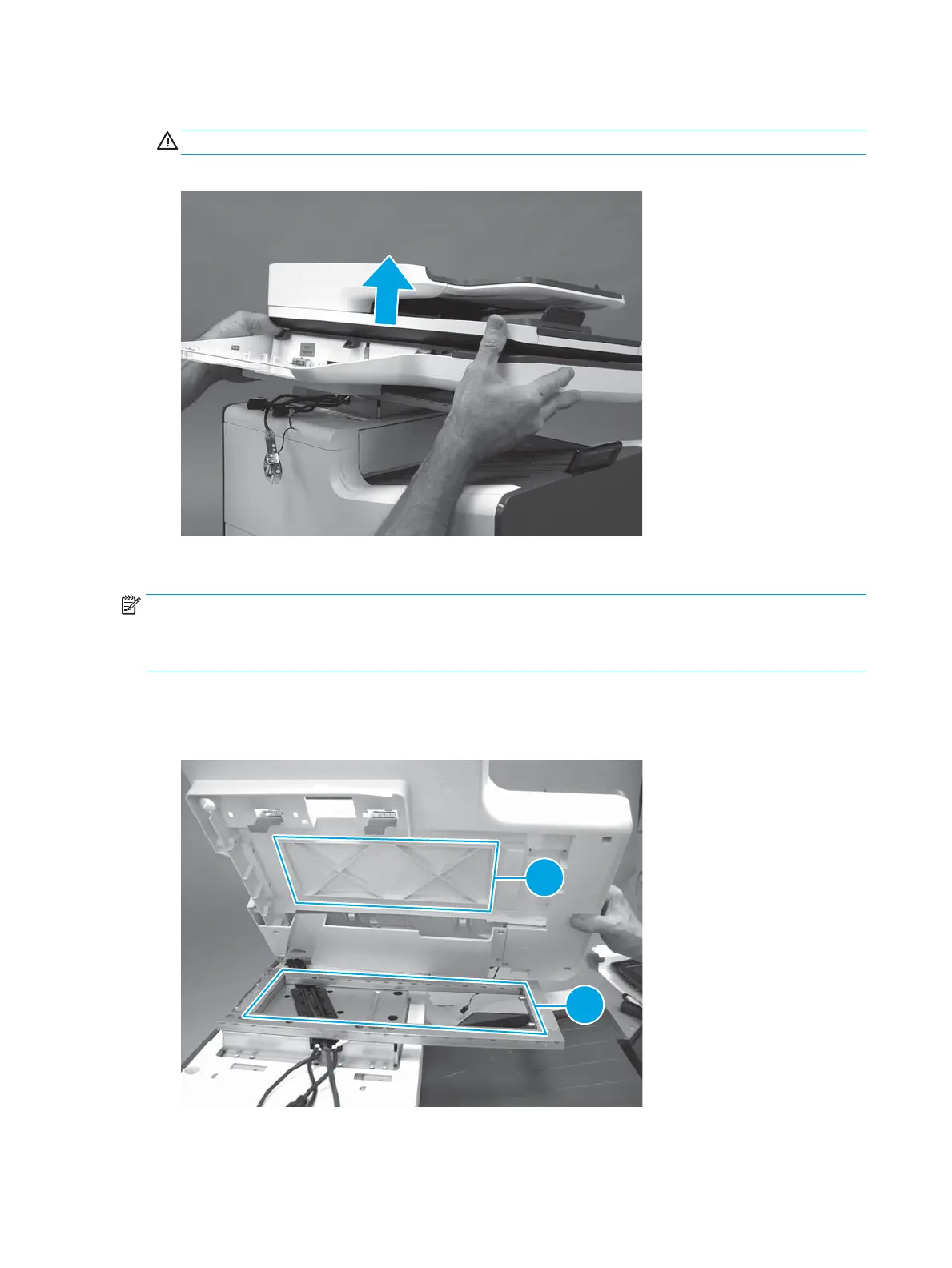

23. Lift the ISA straight up and o of the printer base to remove it.
CAUTION: The ISA is bulky and heavy. Do not drop the ISA.
Figure 1-911 Remove the ISA
Step 14: Install the Integrated Scanner Assembly (ISA) (PM)
NOTE: The ISA includes the document feeder, sub-scanner assembly (SSA), and the scanner control board
(SCB)
586 printers only.
1. Before proceeding, locate the ISA mounting bracket (callout 1) on the bottom of the ISA and the tray
(callout 2) on the printer base.
Figure 1-912 Locate the ISA mounting bracket
548 Chapter 1 Removal and replacement ENWW
