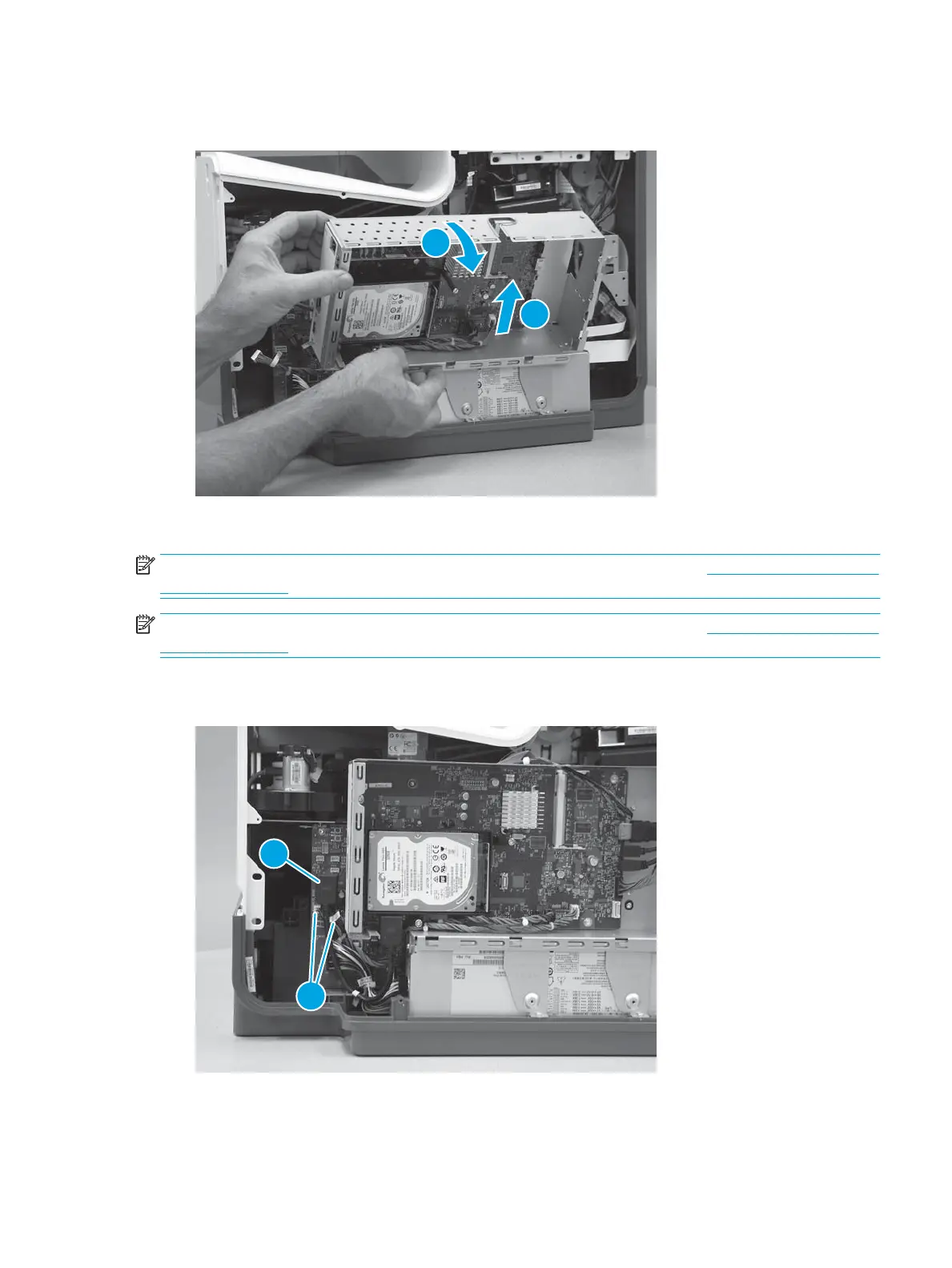

5. Rotate the top of the assembly out and away from the printer, and then remove the assembly.
Figure 1-751 Remove the formatter and cage
Step 5: Remove the formatter and formatter cage (556)
NOTE: This step is for the 556 printer. For the 586 printer, skip this step and go to Step 6: Remove the power
supply on page 458.
NOTE: This step is for the 586 printer. For the 556 printer, skip this step and go to Step 6: Remove the power
supply on page 458.
1. Disconnect one HMDI cable (callout 1), and then disconnect two connectors (callout 2).
Figure 1-752 Disconnect connectors
ENWW Removal and replacement procedures 455
