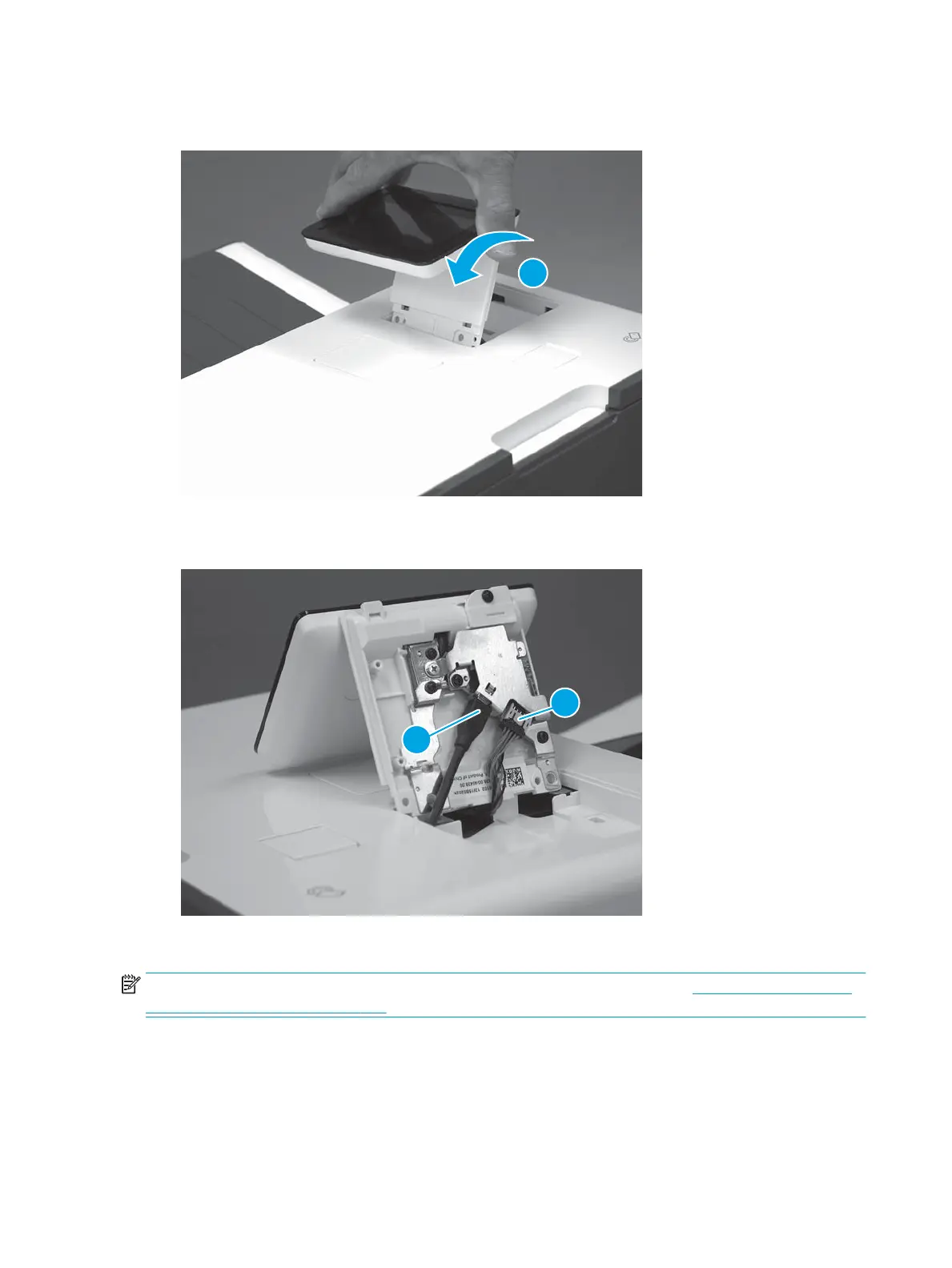

5. Turn the control panel over (callout 1), to gain access to the bottom side.
Figure 1-295 Turn the control panel over
6. Disconnect one HDMI cable (callout 1) and one connector (callout 2), and then remove the control panel.
Figure 1-296 Disconnect connectors and remove the control panel
Step 2: Remove the integrated scanner assembly (ISA) (586)
NOTE: This step is for the 586 printer. For the 556 printer, skip this step and go to Step 3: Remove the left-
rear top cover cap (556) on page 220.
208 Chapter 1 Removal and replacement ENWW
