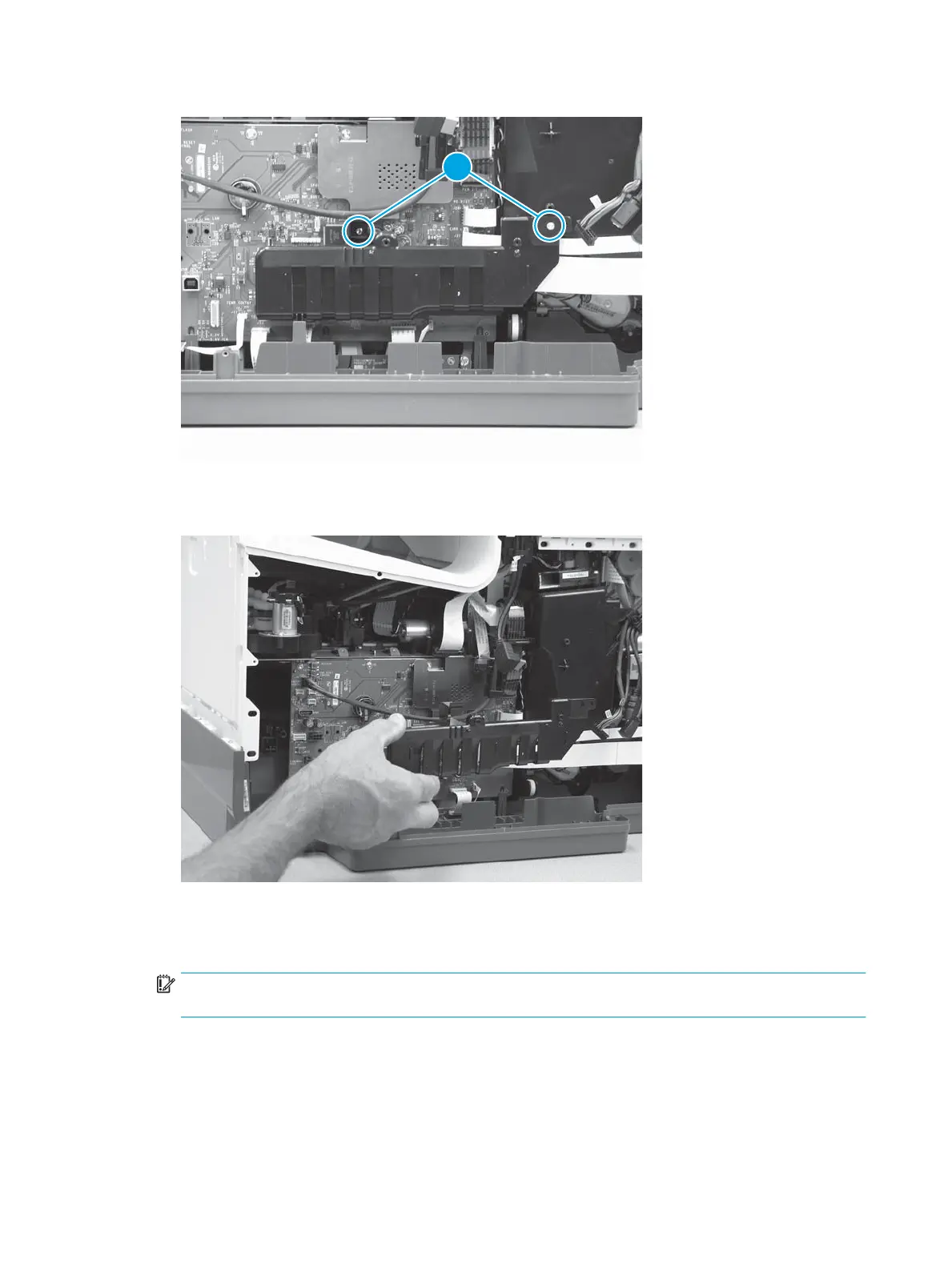

Figure 1-811 Remove two screws
2. Remove the bracket.
Figure 1-812 Remove the bracket
Step 12: Remove the blank cover (DU)
1. Open the blank cover.
IMPORTANT: The blank cover carries a serial number sticker. The cover/sticker must be transferred to
the replacement print mechanism (PM).
492 Chapter 1 Removal and replacement ENWW
