9. Remove the cover.
NOTE: Pass the cables, wire harnesses, and the guide through the openings in the cover as it is
removed.

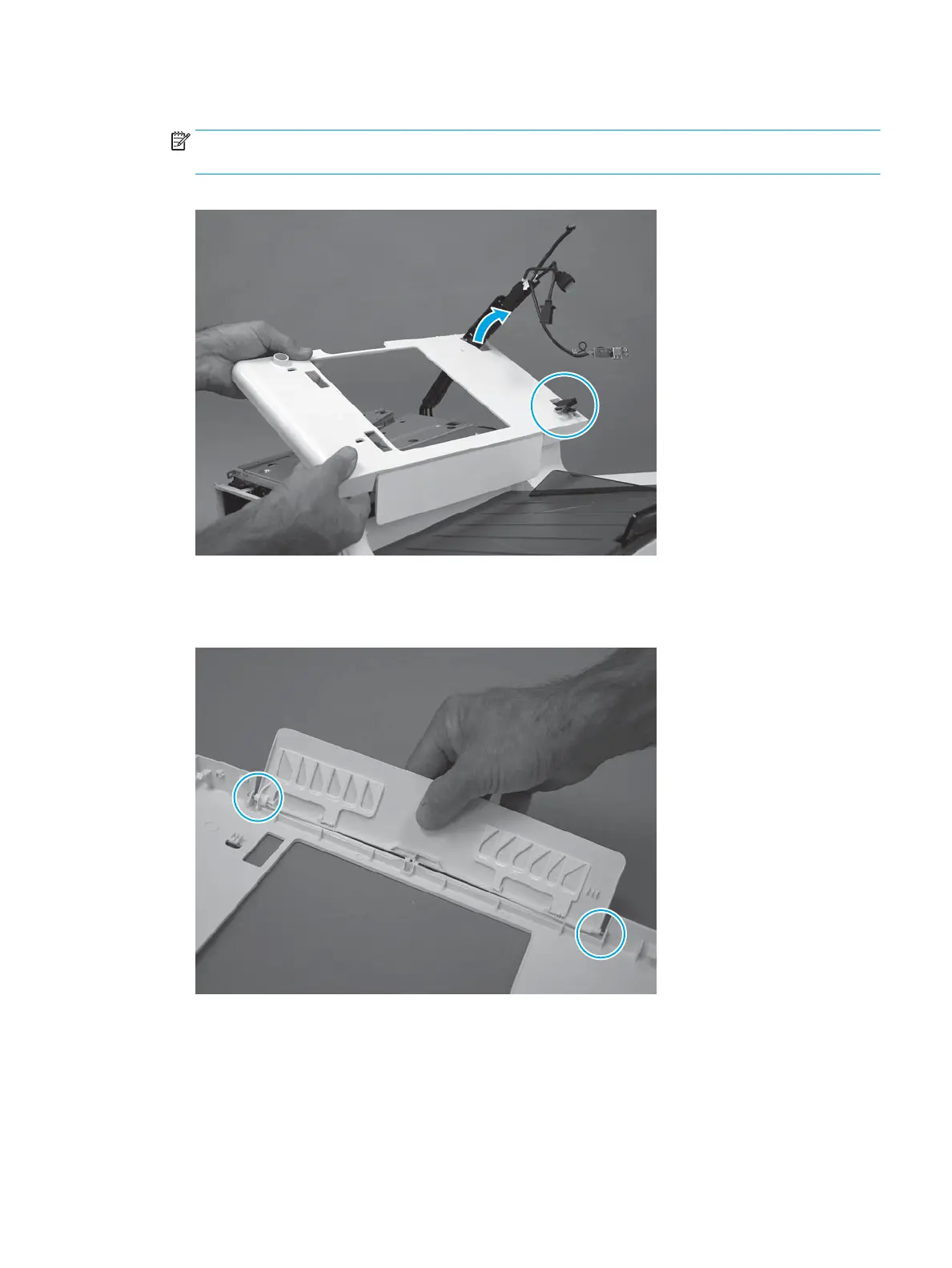

Figure 1-349 Remove the top cover (586)
10. Optional step: If a replacement top cover is being installed, remove the output bin ap by exing the
center of the ap to release the right- and left-side hinge pins from the holes in the cover.
Figure 1-350 Remove the output bin ap
Step 12: Removal the front cover
1. Remove two screws (callout 1).
ENWW Removal and replacement procedures 235
