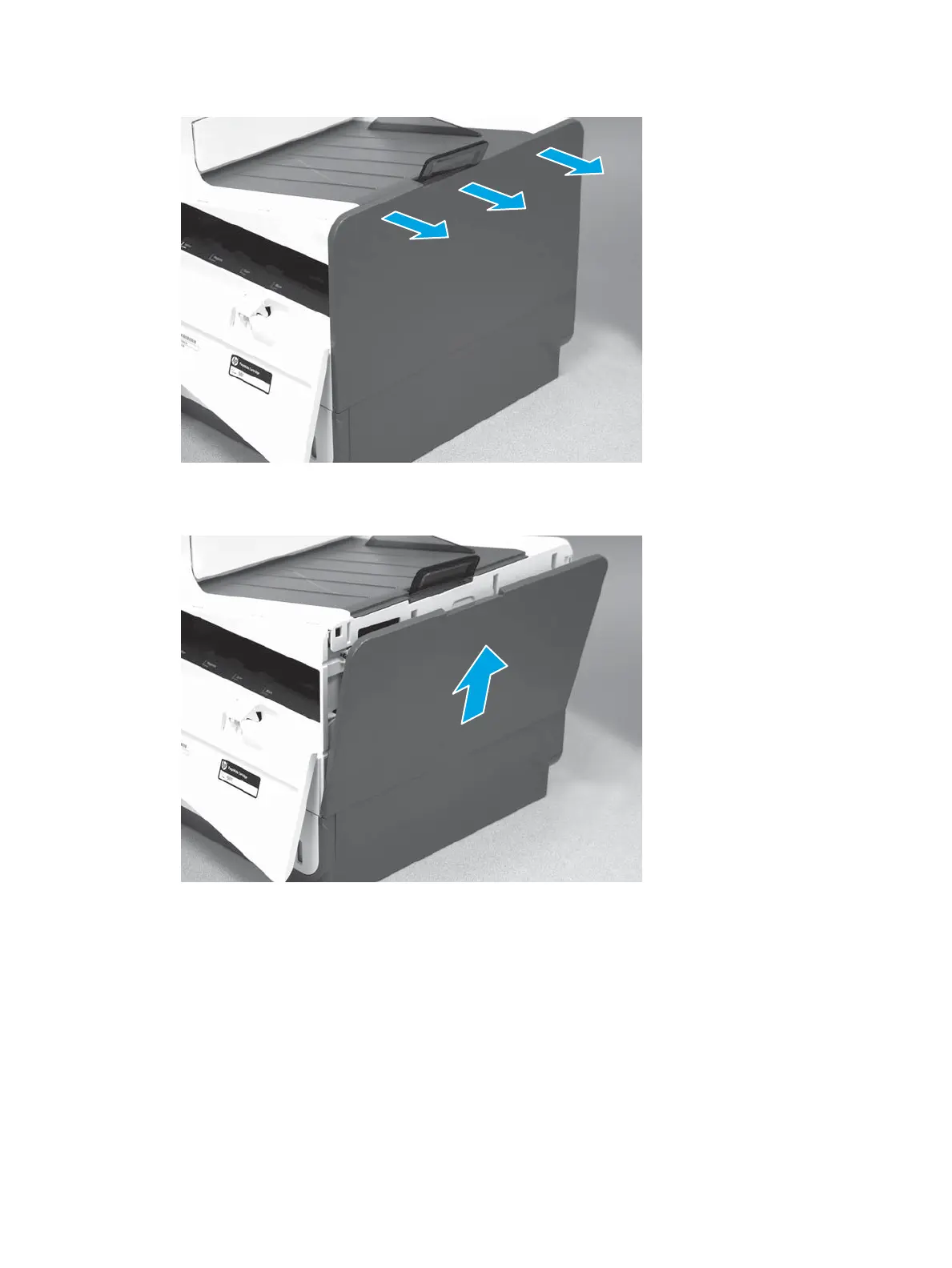

Figure 1-2 Release the right cover (outer)
2. Slide the cover up and away from the printer to remove it.
Figure 1-3 Remove the right cover (outer)
Step 2: Remove the output bin
▲
Slightly slide the output bin to the right, and then lift up on it to remove it.
14 Chapter 1 Removal and replacement ENWW
