2. Engage the cover by sliding it down about 10 mm (0.4 in).

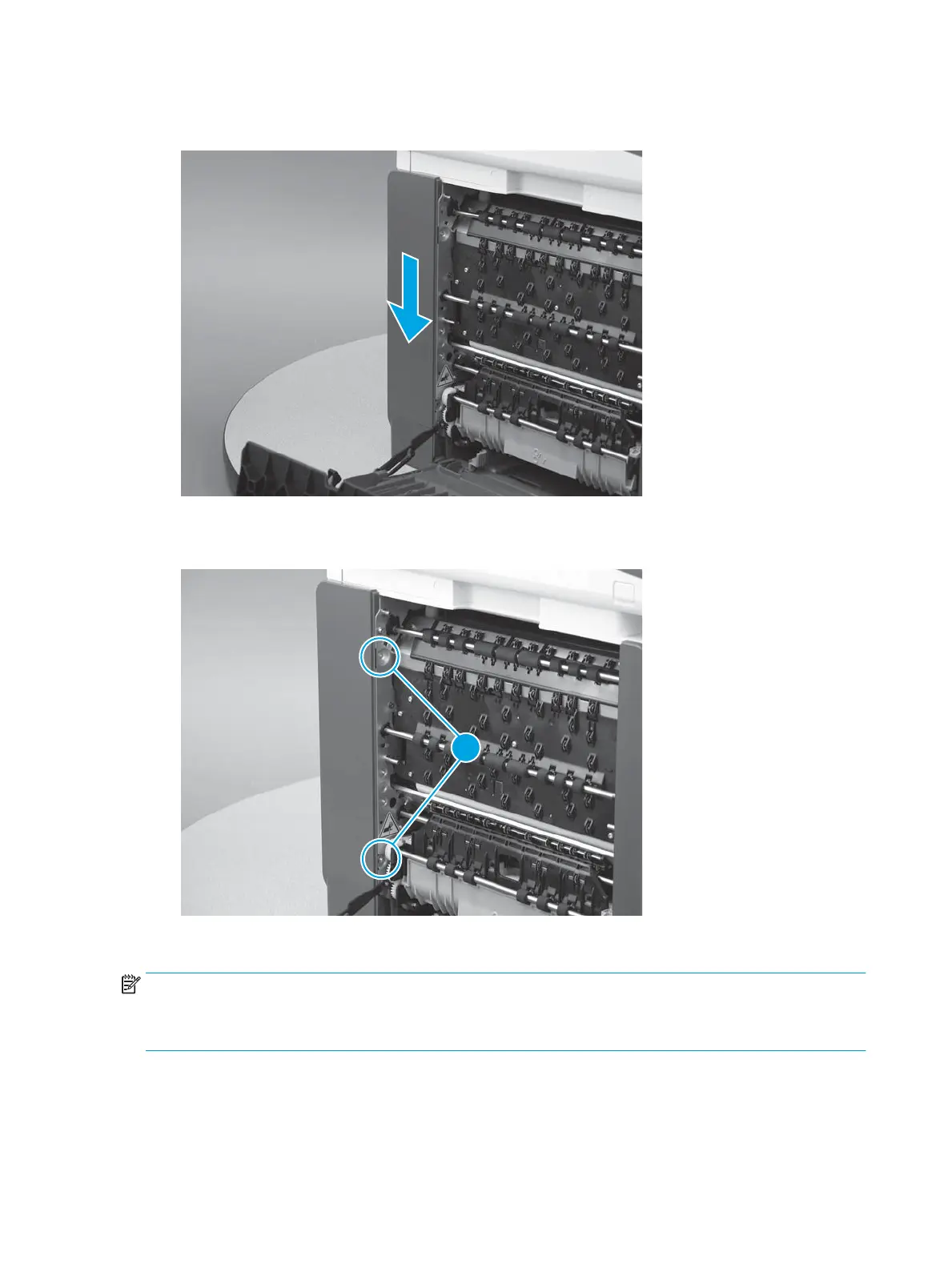

Figure 1-264 Engage the cover
3. Install two screws (callout 1).
Figure 1-265 Install two screws
Step 15: Install the integrated scanner assembly (ISA; 586)
NOTE: The ISA includes the document feeder, sub-scanner assembly (SSA), and the scanner control board
(SCB)
586 printers only.
1. Before proceeding, locate the ISA mounting bracket (callout 1) on the bottom of the ISA and the tray
(callout 2) on the printer base.
190 Chapter 1 Removal and replacement ENWW
