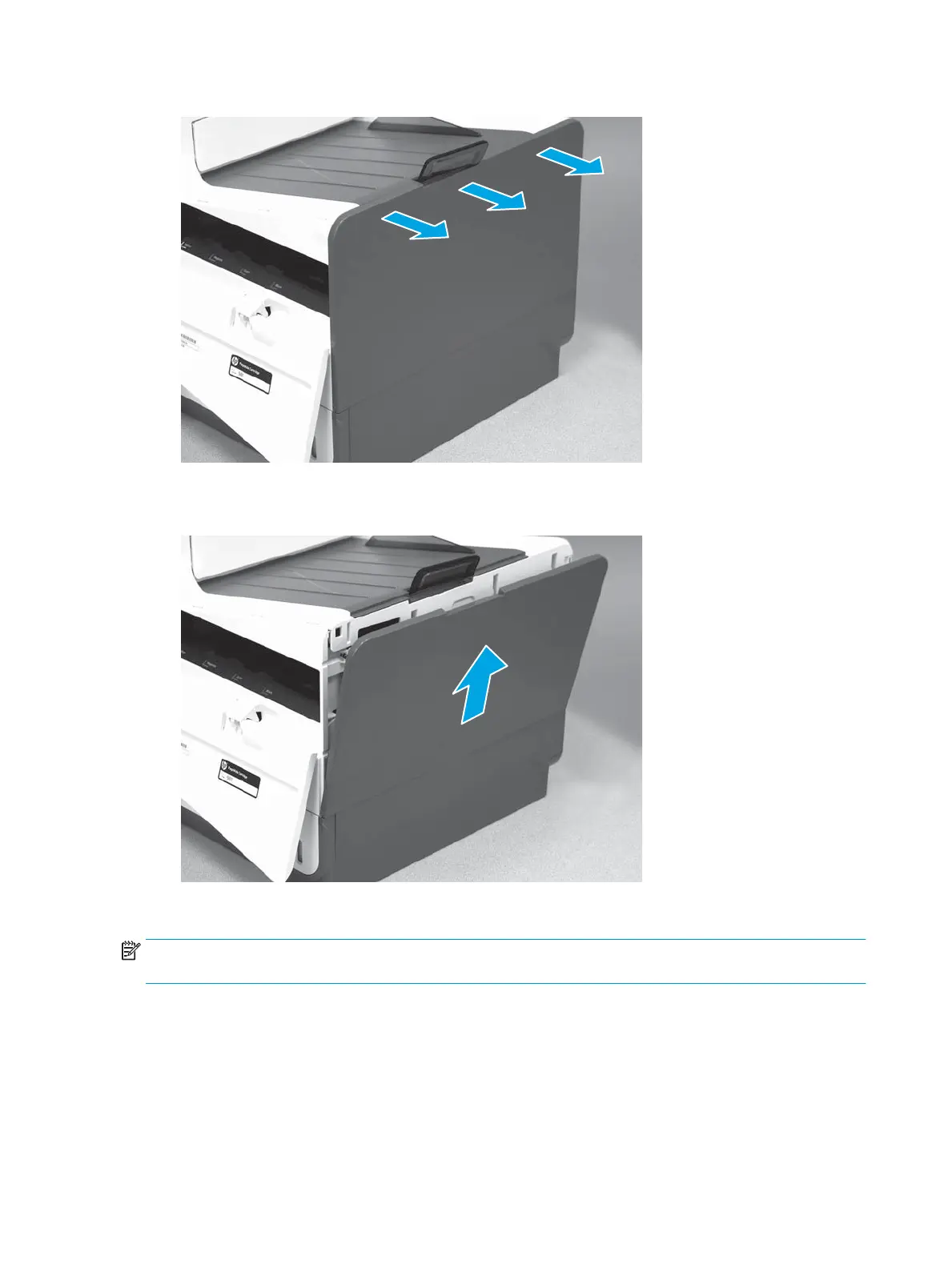

Figure 1-859 Release the right cover (outer)
2. Slide the cover up and away from the printer to remove it.
Figure 1-860 Remove the right cover (outer)
Step 3: Remove the formatter cover (PM)
NOTE: This cover might have come o when the blue shipping tape was removed earlier after unpacking the
PM. If so, skip this step.
▲
If installed, slide the formatter cover away from the PM to remove it.
522 Chapter 1 Removal and replacement ENWW
