2. Rotate the right edge of the DIMM toward the holder (callout 1). Make sure that the two locking arms
(callout 2) snap into place.

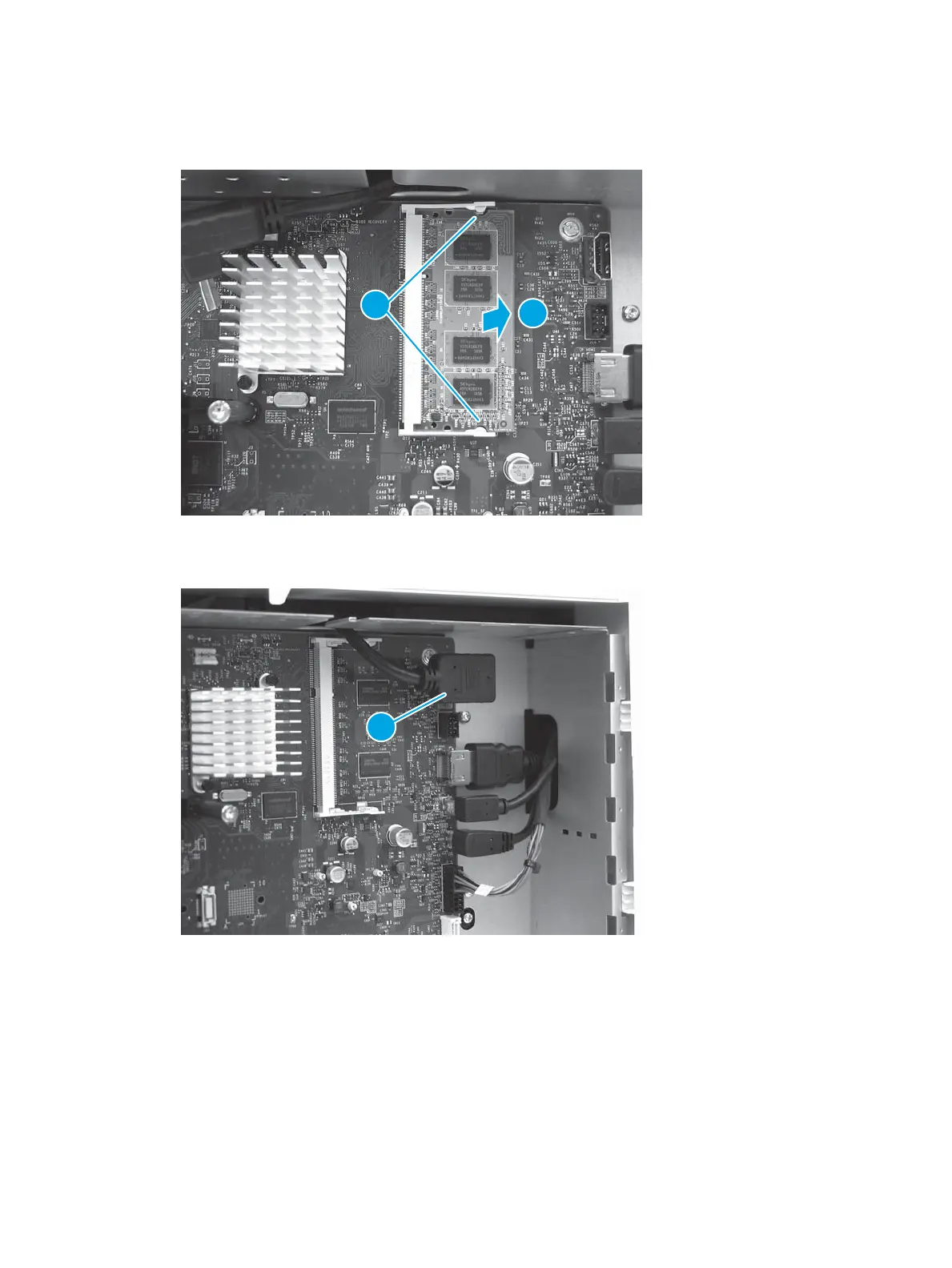

Figure 1-992 Seat the SODIMM
3. 586 models only: Connect one connector (callout 1)
Figure 1-993 Disconnect one connector (586)
Step 5: Install the formatter cover
▲
Slide the cover onto the printer (callout 1) to install it, and then install two thumb screws (callout 2).
602 Chapter 1 Removal and replacement ENWW
