Step 2: Remove the fax PCA
NOTE: Fax models only. For all other models, skip this step and go to Step 3: Remove the hard-disk drive
(HDD) on page 357.
CAUTION: ESD-sensitive part.
1. Locate the fax PCA (callout 1) on the formatter.

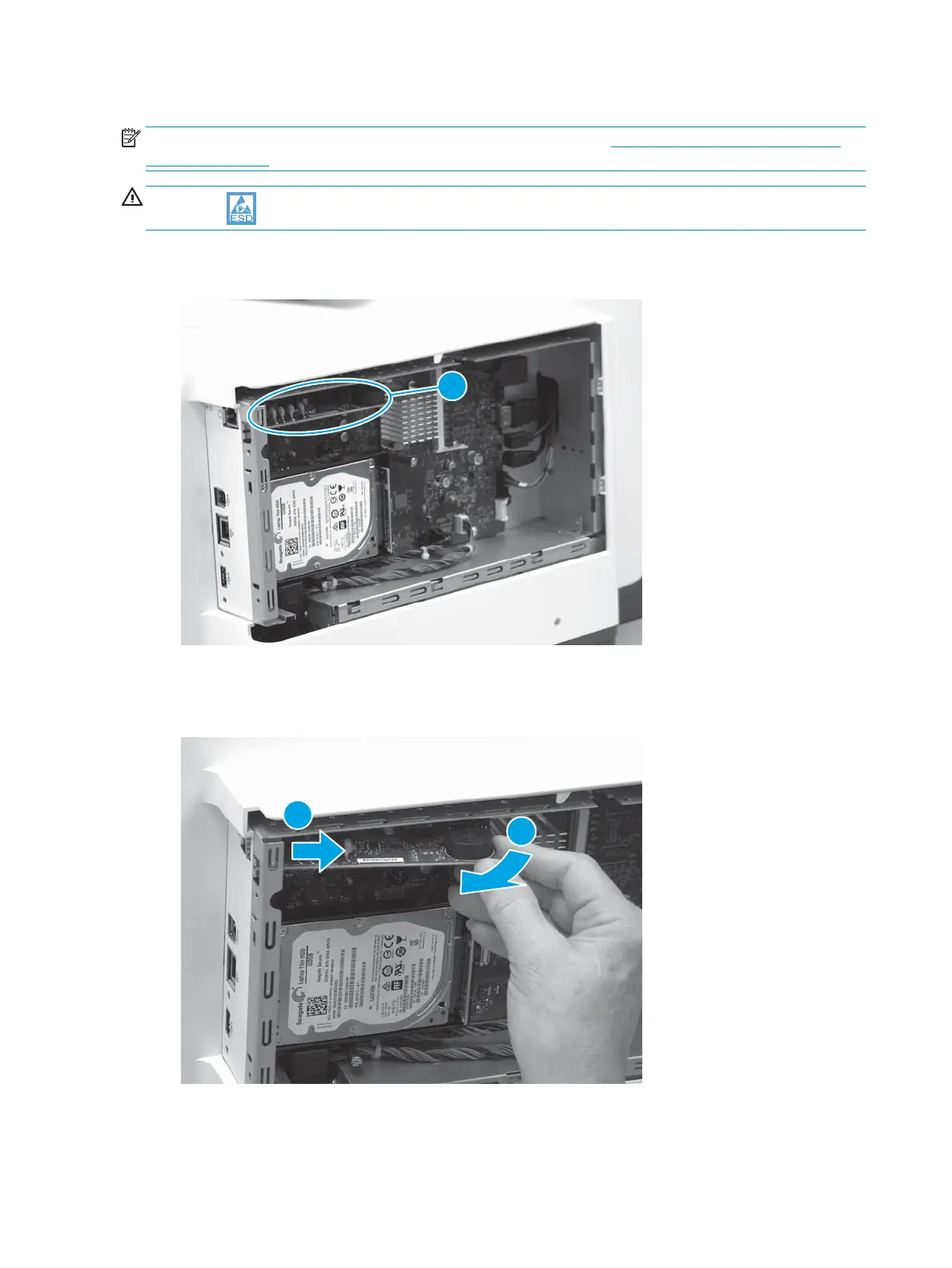

Figure 1-577 Locate the fax PCA
1
2. Rotate the right end of the fax PCA away from the formatter (callout 1), and then slide the PCA to the
right (callout 2) to remove it.
Figure 1-578 Remove the fax PCA
1
2
