3. Remove the cover.

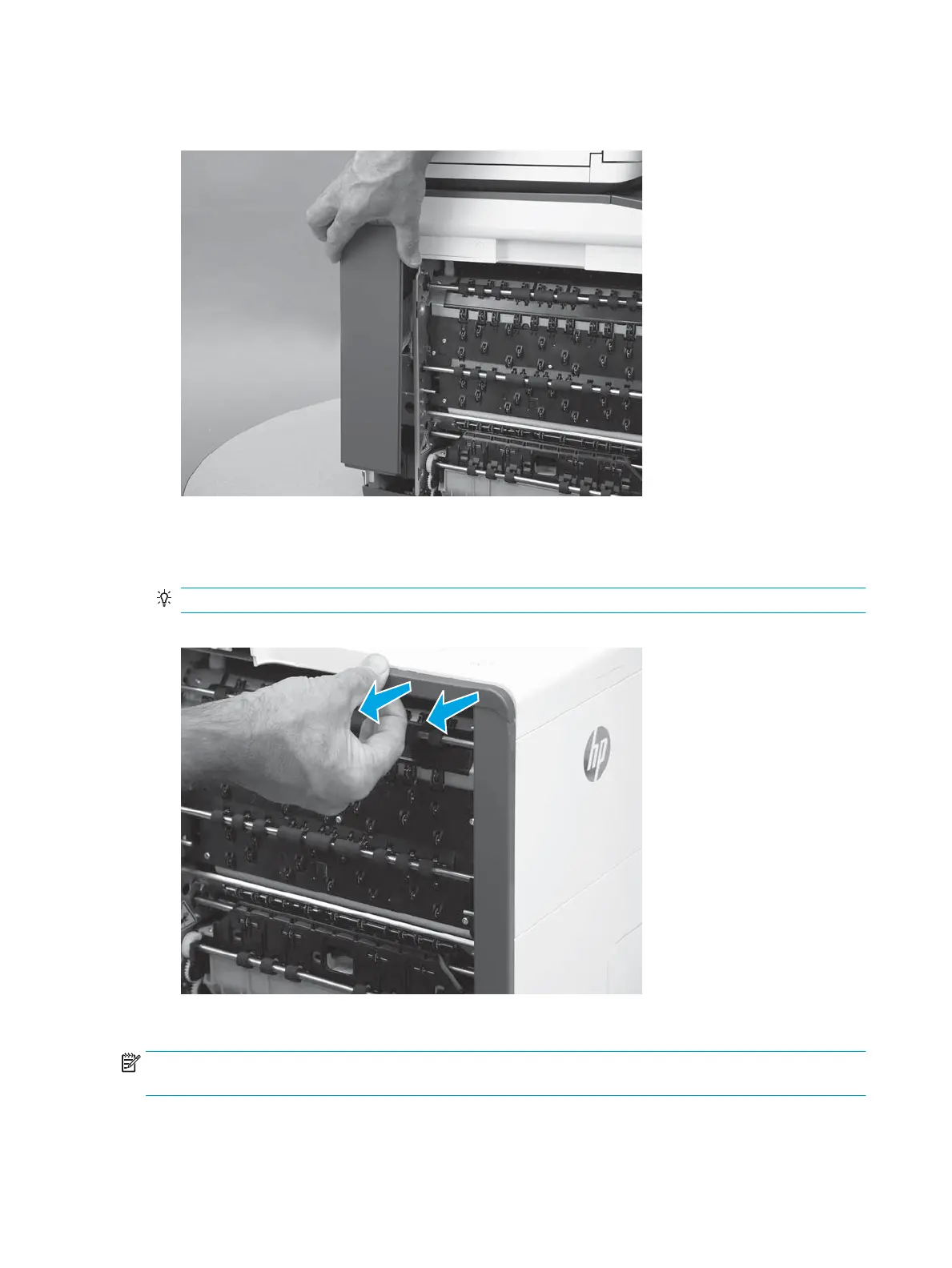

Figure 1-150 Remove the left rear cover
Step 4: Remove the left-front top cover cap (556)
▲
Open the left door, and then carefully pull the cover o of the printer.
TIP: It might be easier remove the cover o by using a small at-blade screwdriver.
Figure 1-151 Remove left-front top cover cap (556)
Step 5: Remove the left front cover
NOTE: The gures in this section show the 586 printer. However, the instructions for removing the cover are
valid for 556 printers.
1. Remove one screw (callout 1).
