Step 4: Remove the embedded MultiMedia Card (eMMC)
NOTE: 556dn models only. For all other printers and models, skip this step and go to Step 5: Remove the
small outline dual in-line memory module (SODIMM) on page 358.
CAUTION: ESD-sensitive part.
NOTE: M506 (all) and M527dn printers only.
▲
Locate the eMMC component on the formatter, and then pull it straight o of the formatter to remove it.

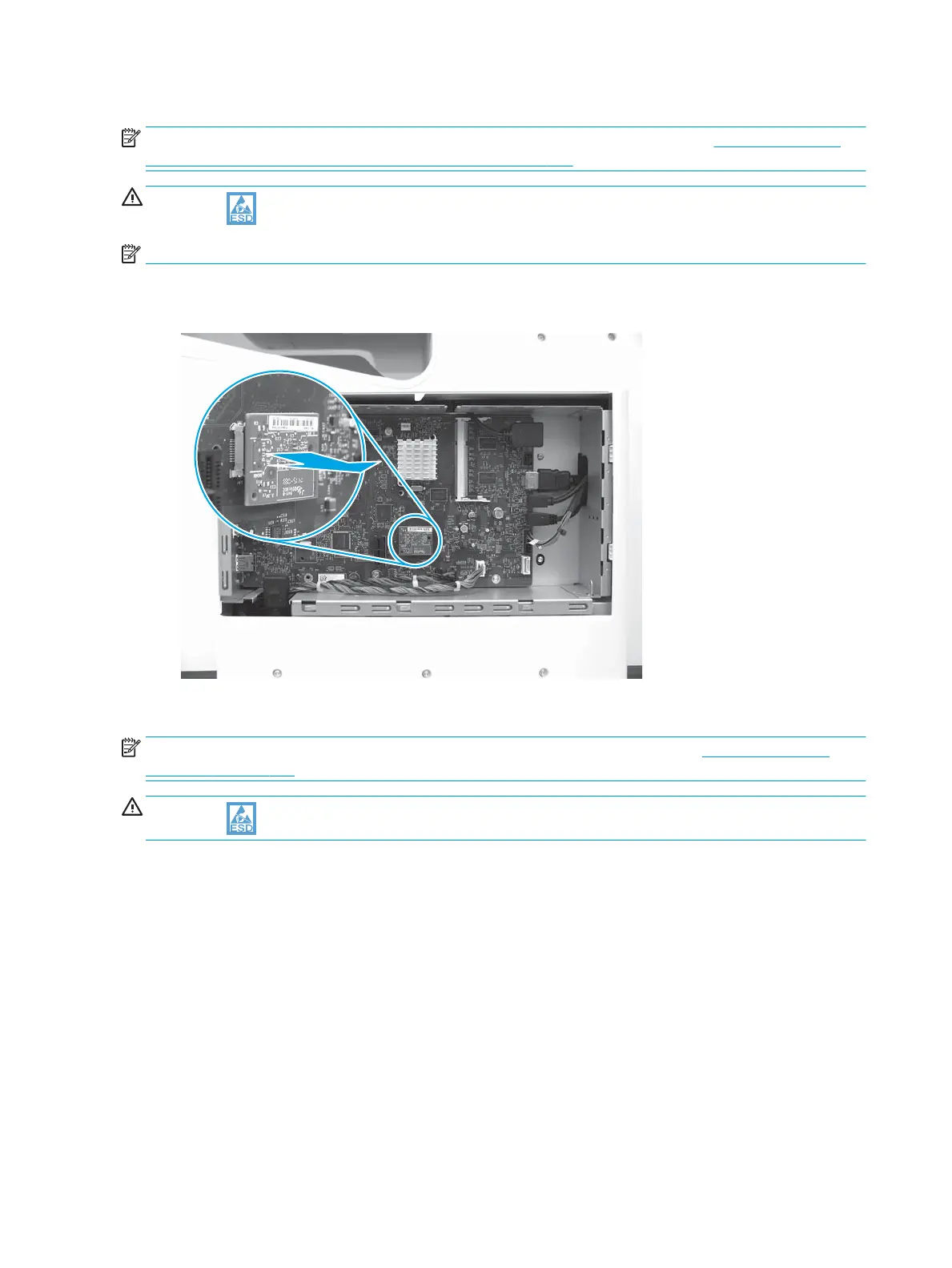

Figure 1-581 Remove the eMMC
Step 5: Remove the small outline dual in-line memory module (SODIMM)
NOTE: SODIMM installed models only. For all other models, skip this step and go to Step 6: Remove the
formatter on page 360.
CAUTION: ESD-sensitive part.
1. Locate the DIMM component on the formatter (callout 1).
358 Chapter 1 Removal and replacement ENWW
