3. Install two screws (callout 1).

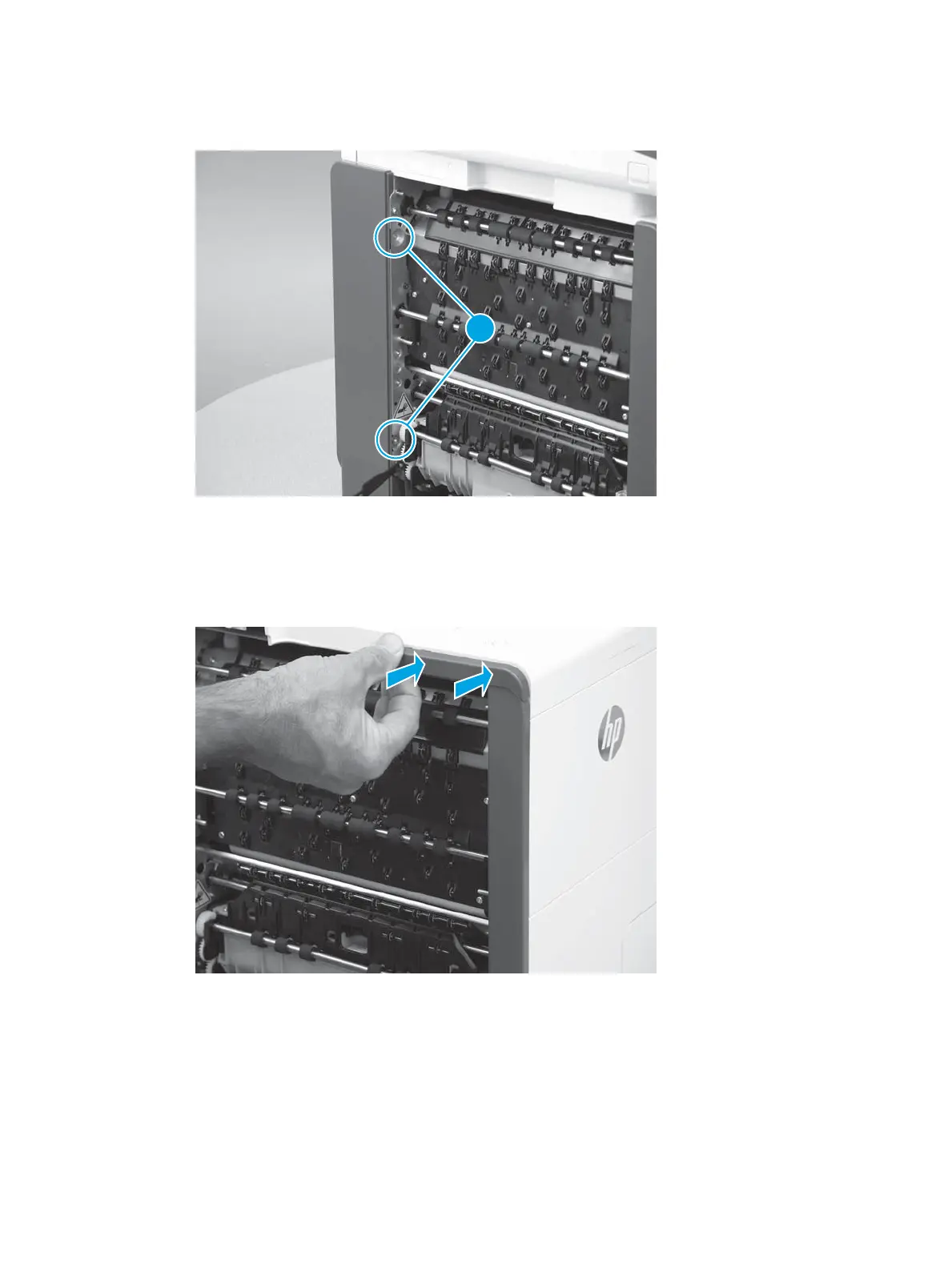

Figure 1-188 Install two screws
Step 17: Install the left-rear top cover cap (556)
▲
Align the bosses on the back side of the cover with the holes in the top cover, and then push the cover
straight onto the top cover to install it.
Figure 1-189 Install the left-front top cover cap (556)
Step 18: Install the control panel (556)
1. Connect one HDMI cable (callout 1) and one connector (callout 2).
ENWW Removal and replacement procedures 149
