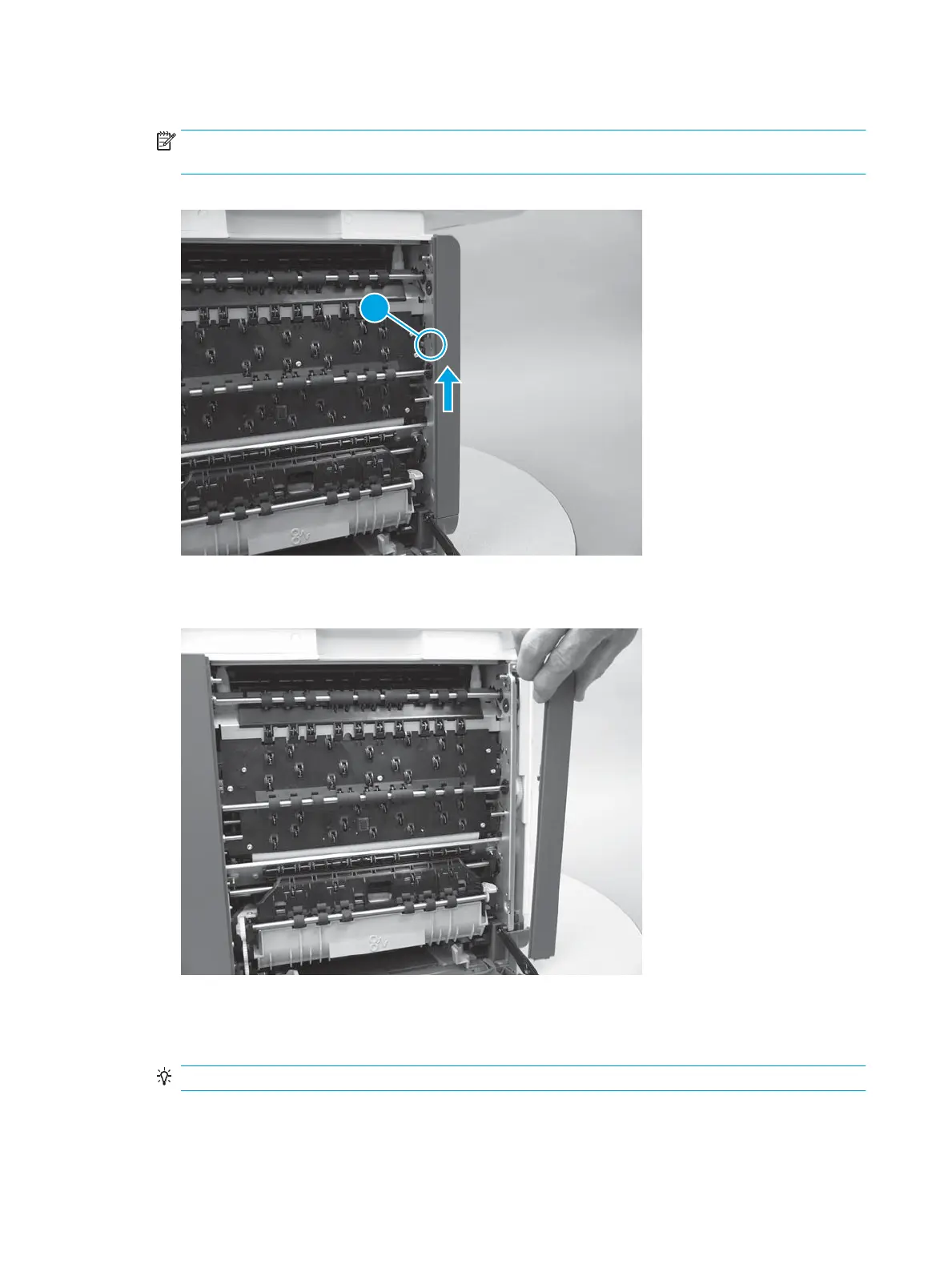

2. Release one tab (callout 1), and then release the cover by sliding it up about 10 mm (0.4 in).
NOTE: This cover can be very diicult to release. It might be easier to use a at-blade screwdriver to
pry the bottom edge of the cover up and away from the chassis.
Figure 1-222 Release the cover
3. Remove the cover.
Figure 1-223 Remove the left front cover
Step 4: Remove the right cover (outer)
1. Pull out on the top corners of the right cover to release the top edge of the cover.
TIP: Open the cartridge door to make removing the cover easier.
168 Chapter 1 Removal and replacement ENWW
