3. Remove the cover.

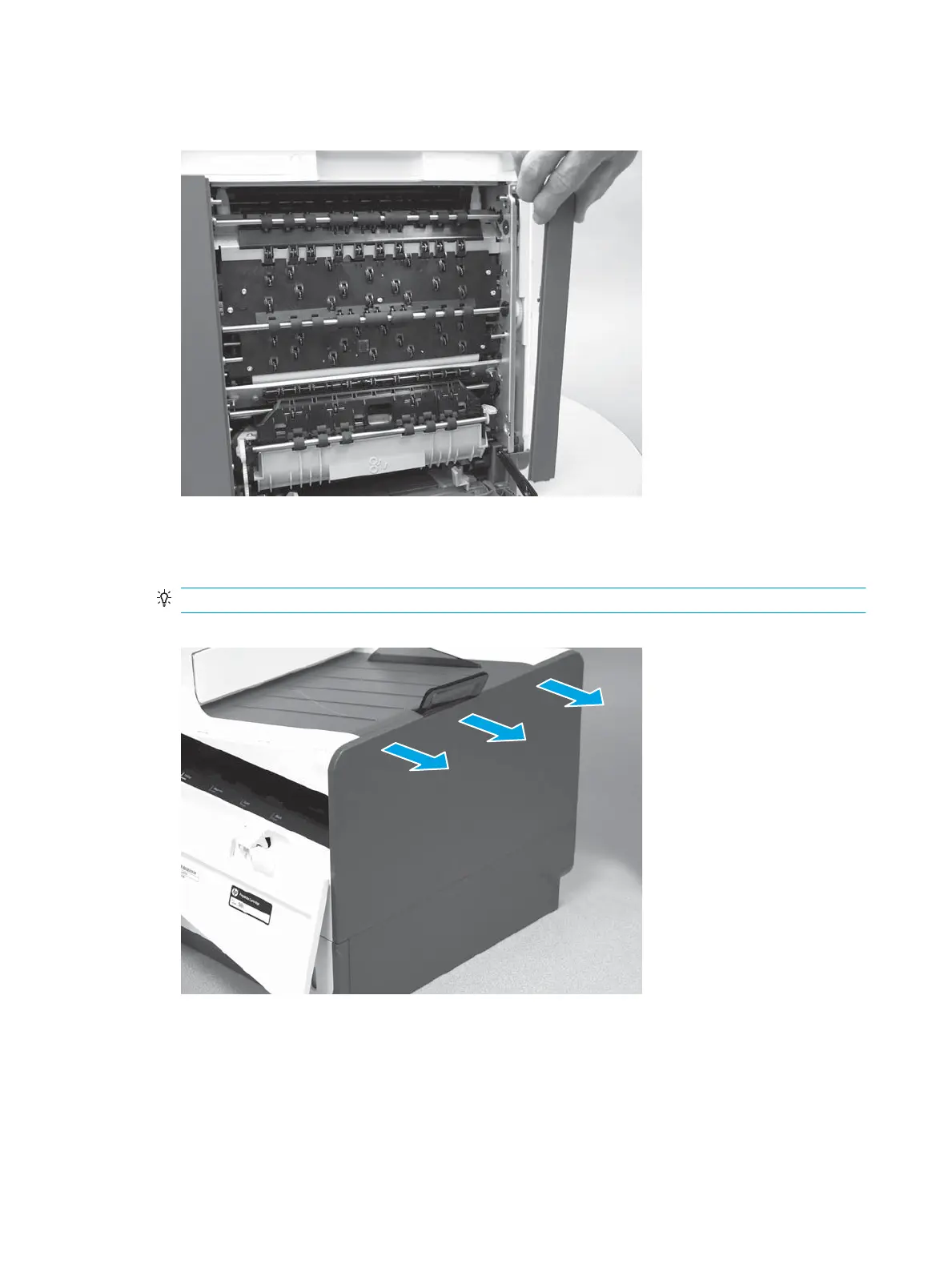

Figure 1-154 Remove the left front cover
Step 6: Remove the right cover (outer)
1. Pull out on the top corners of the right cover to release the top edge of the cover.
TIP: Open the cartridge door to make removing the cover easier.
Figure 1-155 Release the right cover (outer)
132 Chapter 1 Removal and replacement ENWW
