HP PageWide Enterprise Color 556

3. Install two screws (callout 1).

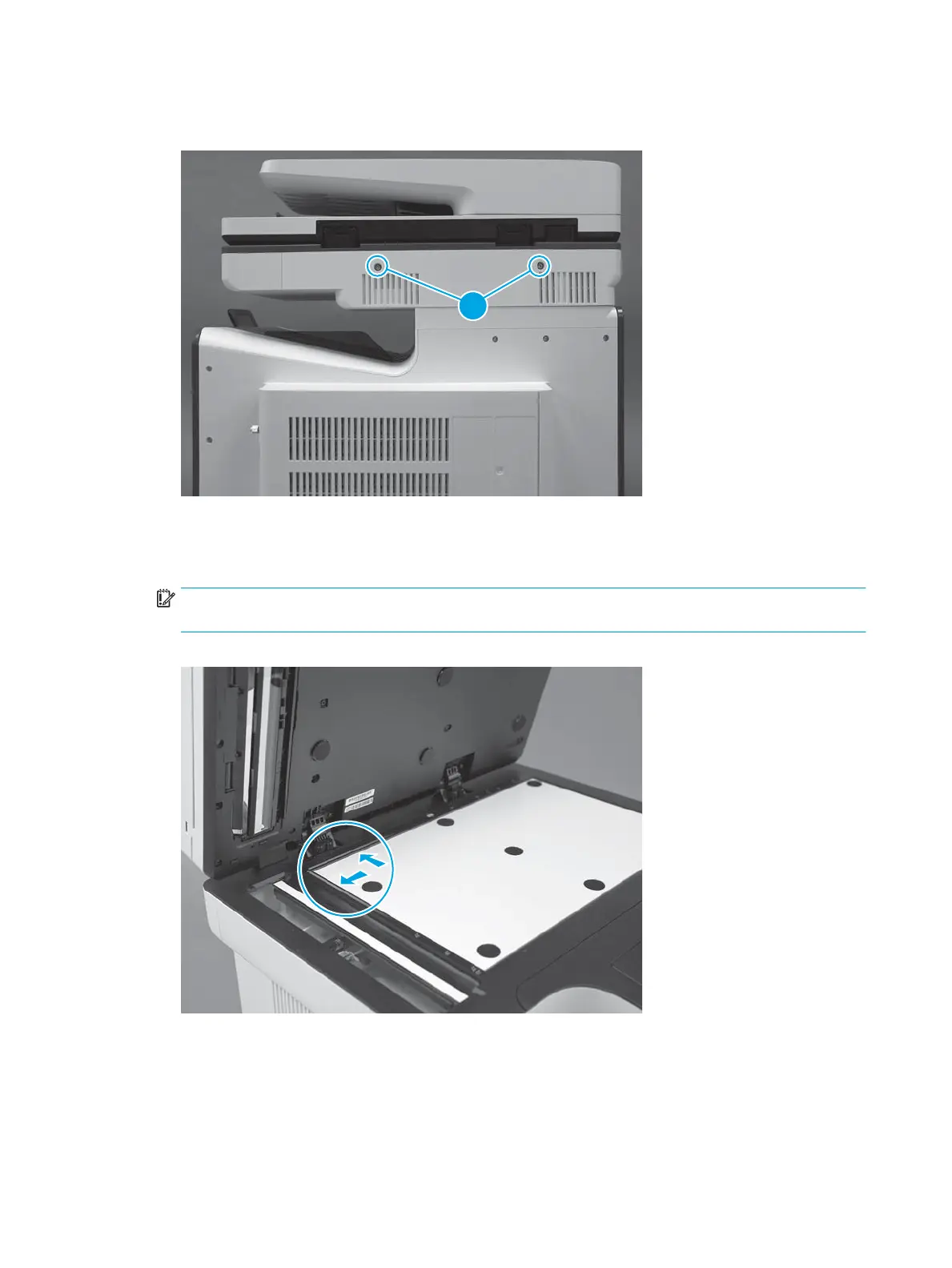

Figure 1-616 Install two screws
1
Step 6: Install the white backing
1. Place the white backing on the scanner glass.
IMPORTANT: Place the corner of the backing that does not have a hook-and-loop fastener in the
upper-left corner of the scanner glass.
Figure 1-617 Place the white backing on the glass
380 Chapter 1 Removal and replacement ENWW
